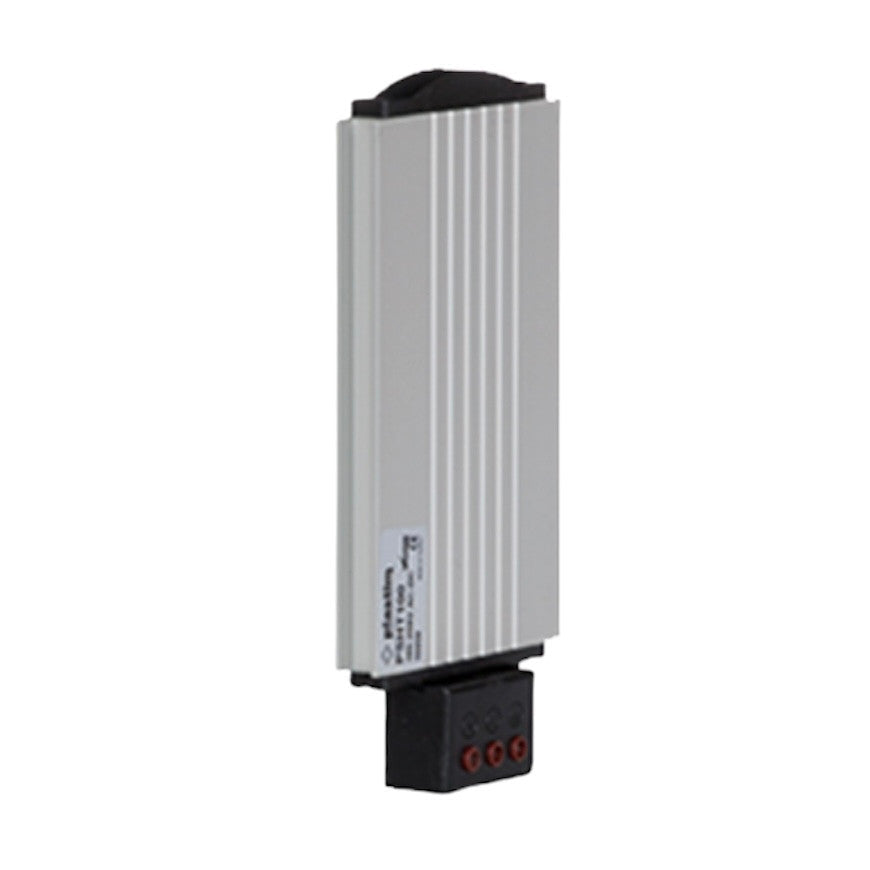

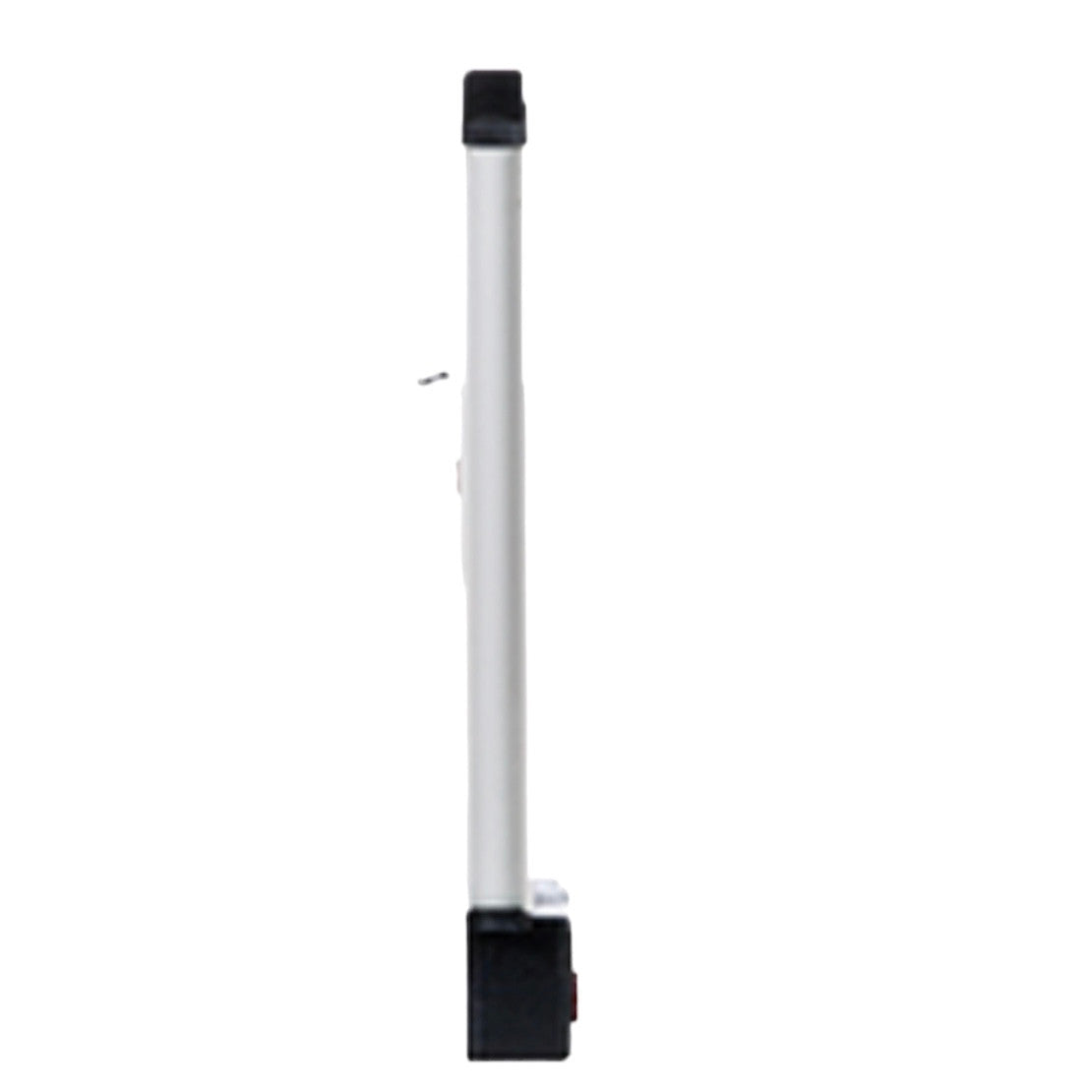

Thin / Slim PTC 50W Heater Distributors, PSHT050, Plastim

Electric (PTC heater, slim thermistor heater) cabinet heater with anodized aluminum radiator and overcurrent protection, for installation on DIN rail with a power of 50 W, 110-220 V AC or DC, PSHT050, Plastim - made in Turkey.

• Heating power: 50 W
• Operating voltage: 100-250 V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overcurrent protection: Electronic thermal relay against overload
• Electrical connection: 3-pole terminal N-L-E
• Protection class IEC: Class II
• Degree of protection: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Radiator: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 148x80x27 mm

• Weight: 0.19 kg

Heating elements are used to maintain temperature and reduce humidity levels in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, bulbs were used for these purposes - however, it is clear that this method does not ensure compliance with modern strict requirements for electrical devices and electronics. Currently, almost all manufacturers are switching to PTC heaters, which not only provide heating but also guarantee safety and durability of operation.

All heaters are equipped with electronic surface overheat protection, which provides an additional guarantee of safe operation.

Given the high demands on cabinet heaters, Plastim has paid maximum attention to the selection of component suppliers. For example, the supplier of PTC heaters is also Schneider Electric, and the terminal for the electrical connection of all components is manufactured to special order by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors, and thus does not release any harmful carcinogenic substances into the air. You agree that this approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese analogs.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetal thermostat or a more complex temperature controller... Both devices can be purchased on our website:
