Bimetal thermostat NC switching, expansion, range 0-60°C - temperature switches
Failed to load pickup availability
Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.
Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.
By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.
On invoice - this payment option is available to partners who have a framework agreement with our company.
If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.
In the event of a complaint, no fee is charged for returning the goods.

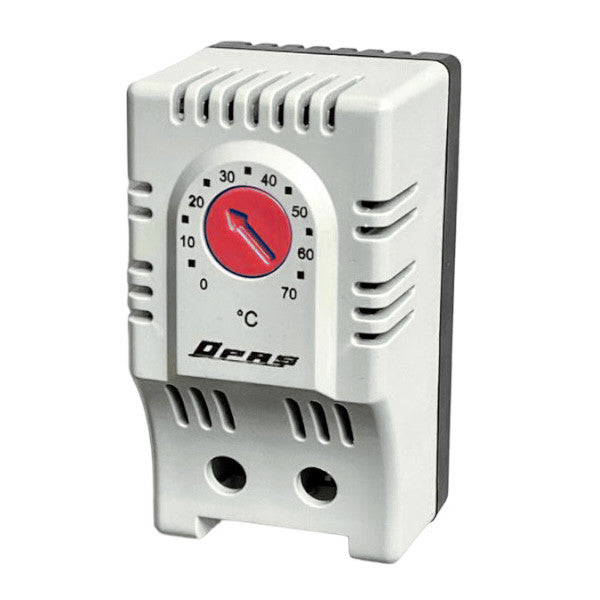

NC bimetal thermostats / temperature switches, 0-60 °C, mounting on DIN.bimetal rail from OPAŞ
Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating sensor. electrical connection using 2 terminals 2.5 mm2. mounting method on 35 mm DIN rail, cross rails, mounting panel.
Used for connecting top plates - heating panels, heated floors, top cables, heat fans.
| Characteristic | PTOT001 |
| Contact type | NC |
| Adjustment range | 0-60 °C |
| Potentiometer color | Red |
| 250 V AC / 120 V AC | 10 (2) A |
| Sensor type | Bimetallic |
| Contact type | Snap Action |
| Lifespan | > 100,000 |
| Electrical connection | 2-pole terminal, screw terminals |
| Plastic material | UL94 V0 ABS Flame retardant material |
| Degree of protection | IP20 |
| Operating temperature | -25 / +80 °C |
| Storage temperature | -45 / +80 °C |
| Installation | DIN rail 35 mm |
| Dimensions HxWxD | 61x34x38 mm |
| Weight | 43g |
