Green Signal Beacon Series 70 with Nut Connection

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

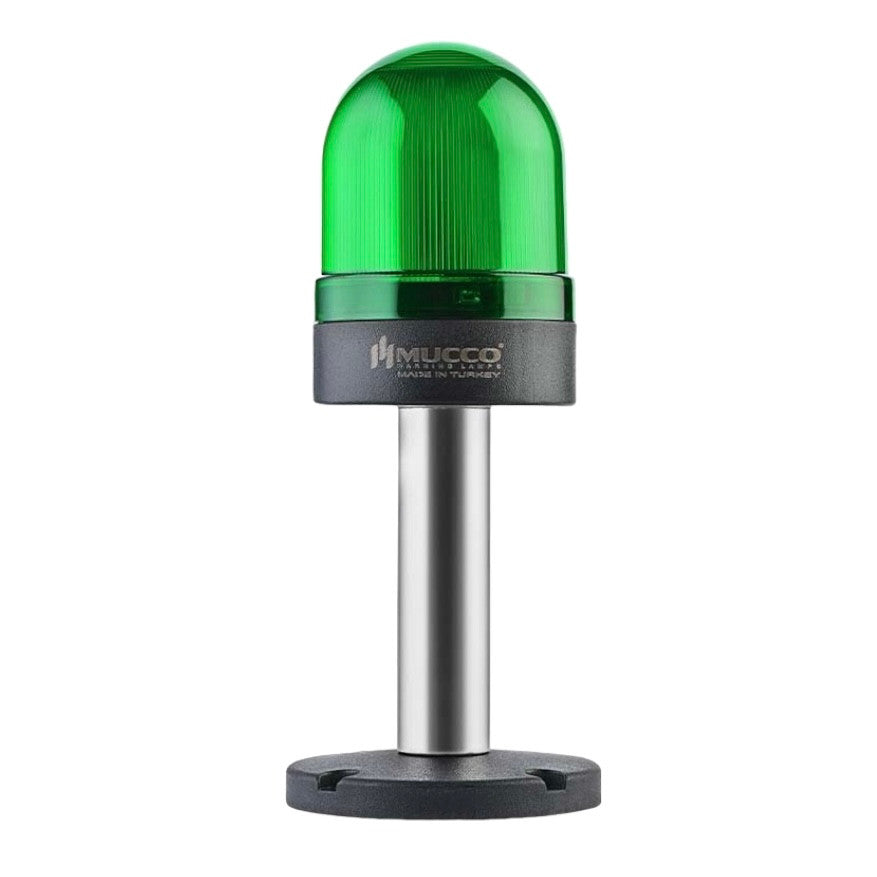

Green signal beacon series 70 with nut connection, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)

LENS OPTIONS 70

LIGHT TYPE: Flashing

Buzzer options with buzzer

EXTENDABLE TUBE 10 cm

TECHNICAL SPECIFICATIONS

* Category:

* Current:

- 24V/DC (without buzzer): 110 mA ±10%

- 24V/DC (with buzzer): 150 mA ±10%

- 40~250V AC/DC (without buzzer): 78 mA ±10% 50-60 Hz

- 40~250V AC/DC (with buzzer): 95 mA ±10% 50-60 Hz

* Body Material: ABS (body) + polycarbonate (lens)

* Lens Colors: Red, Green, Yellow, Blue, White

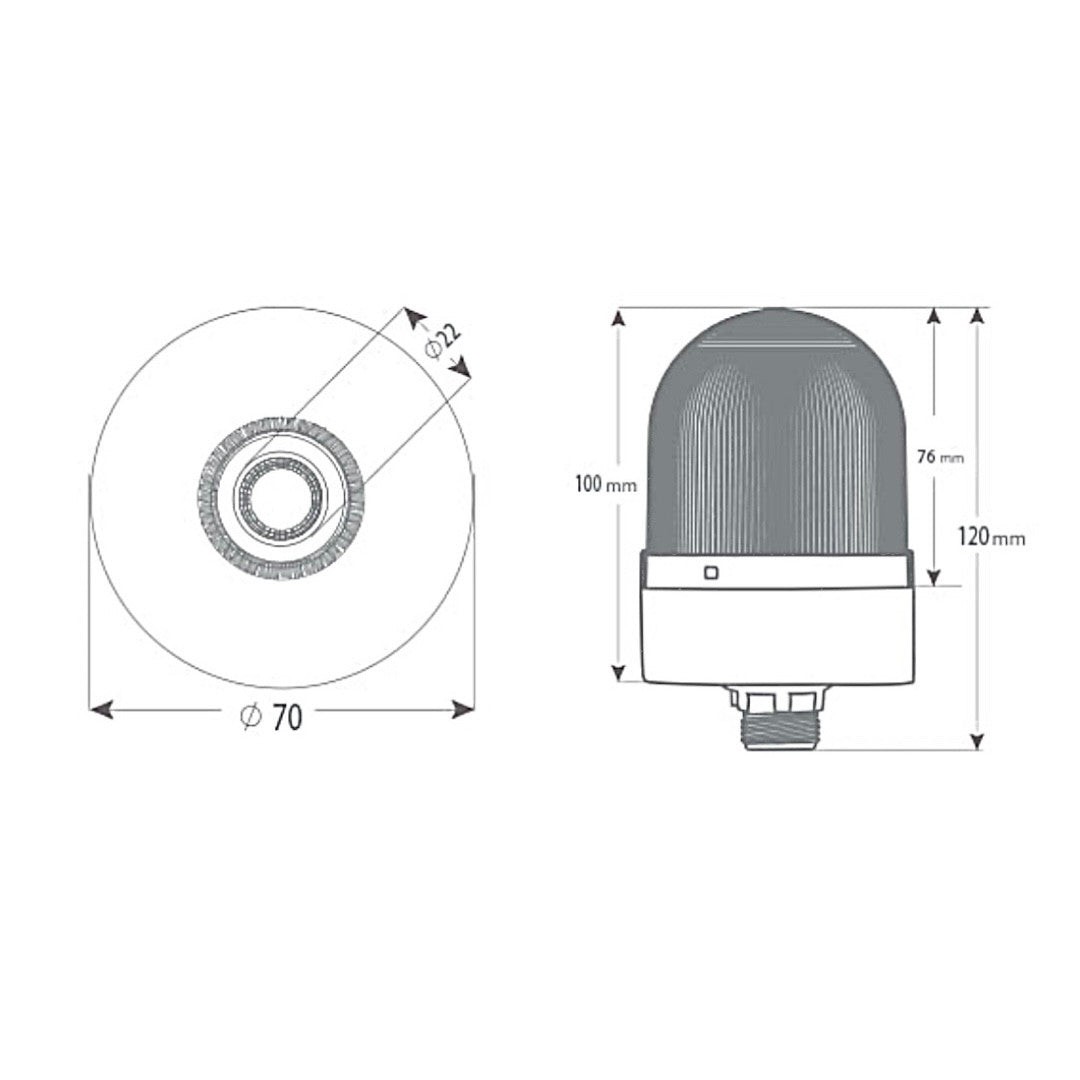

* Lens Diameter: ø70 mm (M22 nut connection)

* Light Source: SMD LED

* Light Mode: Steady, Flashing

* Input Response Time: On/Off: max. 10 ms

* Tone: (cable control): 1 tone

* Alarm: 104~107 dB at 1 m

* Connection: Wired connection

* Mounting Type: Surface mount, wall mount

* Operating Conditions: -20°C to +50°C (-4°F to +122°F)

* Expected Lifespan: min. 50,000 hours

* Protection Rating: IP65

* Protection: Resistant to water, dust, heat, and UV radiation

* Certifications and Quality Documents: ISO-9001, CE, RoHS2, and EAC
