Fan with filter 850 (1200) m3/h, 325x325, 230V 50/60Hz IP54 PTF5000 Plastim
Failed to load pickup availability
Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.
Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.
By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.
On invoice - this payment option is available to partners who have a framework agreement with our company.
If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.
In the event of a complaint, no fee is charged for returning the goods.

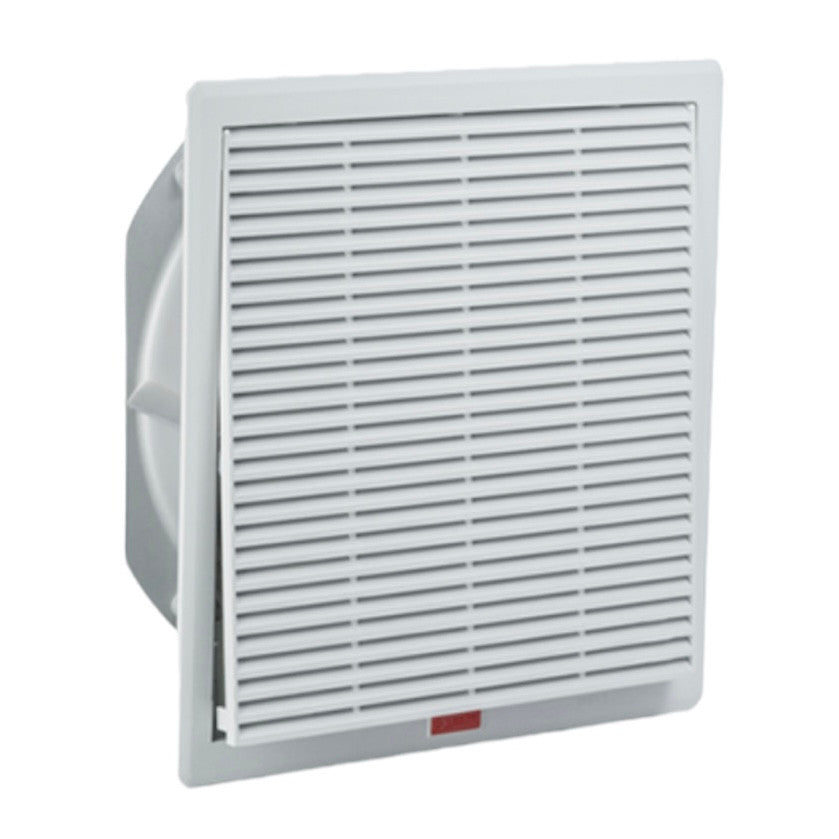

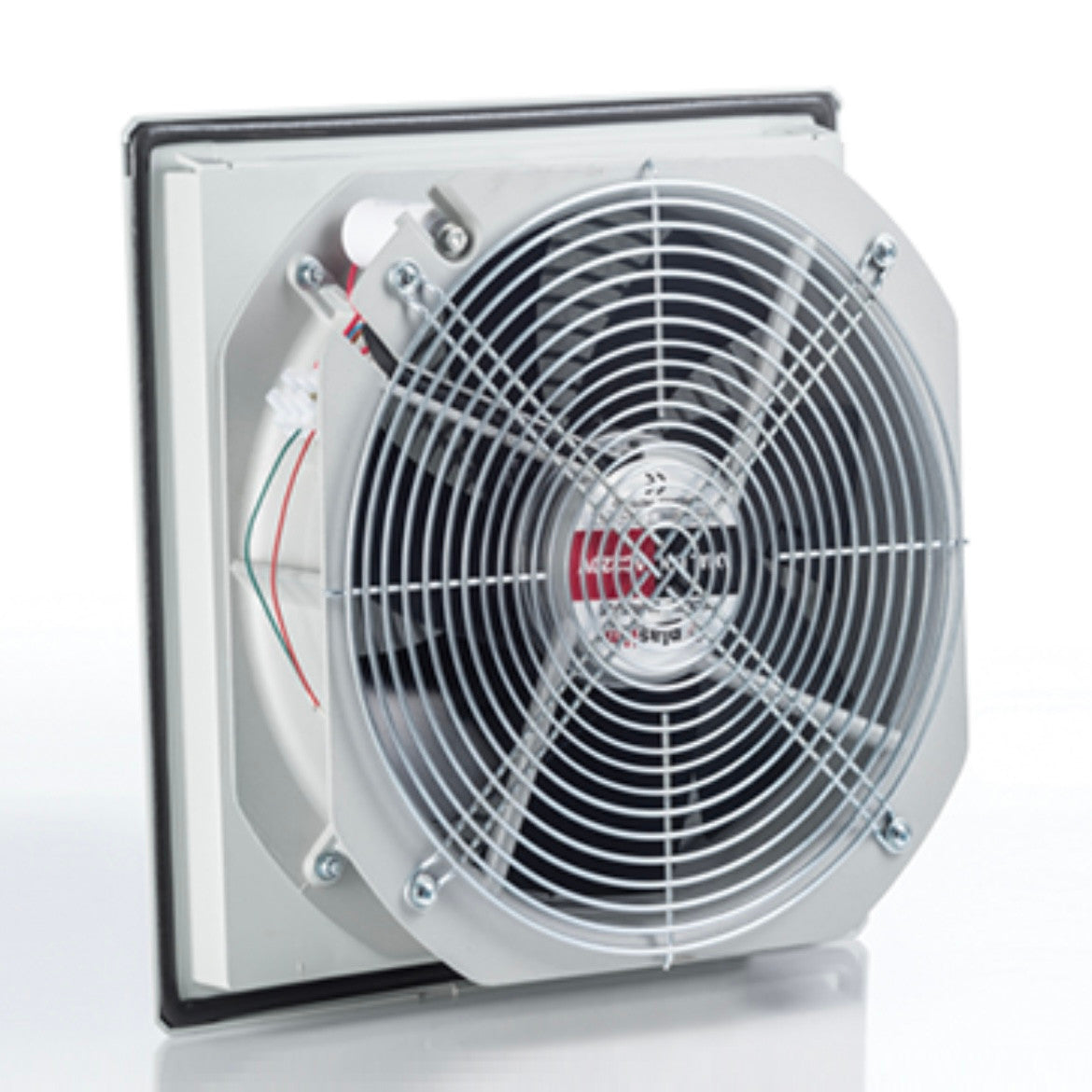

Ventilation grille with fan and filter, dimensions 325x325 mm, for installation in electrical cabinets, automation enclosures, ATMs, or gaming terminals. PTF5000, manufacturer Plastim (Turkey)
Used for drawing in outside air into electrical cabinets, ATMs, payment terminals, slot machines, automation enclosures, control panels, gas stations. Typically installed in the side walls of cabinets to maintain IP.
- External dimensions: 325x325x111 mm
- Installation dimensions: 291x291 mm
- Volumetric flow: 850 (1200) m3/h
- Noise level: 65 (68) dB(A)
- Bearing: Ball bearing
- Operating voltage: 220-230 VAC, 50/60 Hz
- Current consumption: 0.35 (0.72) A
- Rated power: 110 (140) W
- Electrical connection: 4-pole terminal
- Flow direction: Outside to inside (can be changed)
- Operating temperature: -10/+70 °C
- Protection class: IP54
- Plastic material: ABS UL94 V0 Flame retardant
- Sealing: Polyurethane seal
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 4.12 kg
- Installation: quick attachment
The ventilation grille is equipped with a replaceable filter. This filter insert can be easily replaced or cleaned and reused.
To ensure automatic air exchange and maintain temperature with this fan, you will need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.
