Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

Barcode: PTF1000

Regular price: €24,40
Regular price
Sale price: €24,40
Unit price: per

excl. VAT: €19,84

299 in stock

Product variants

Description
Instructions
Payment methods
Warranty

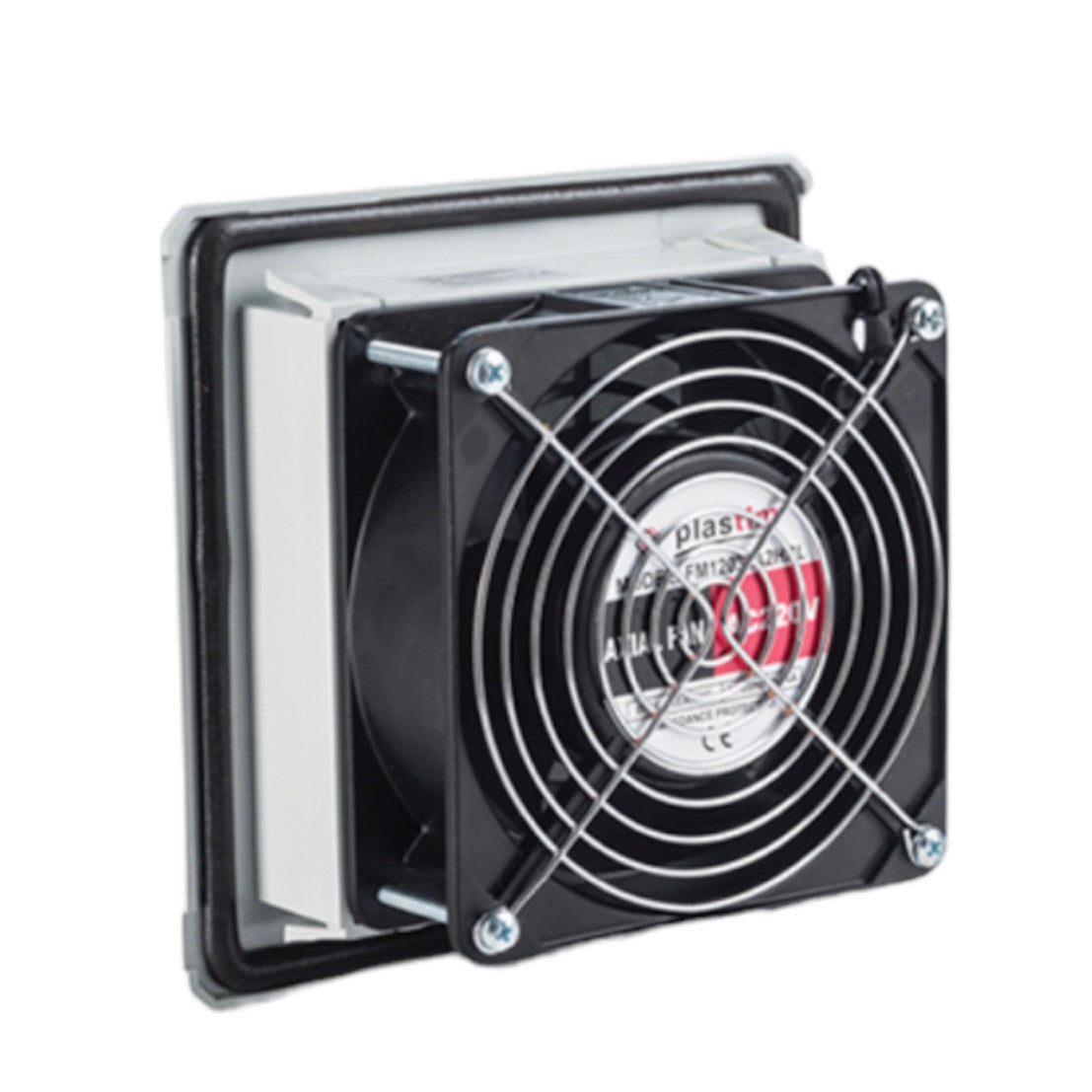

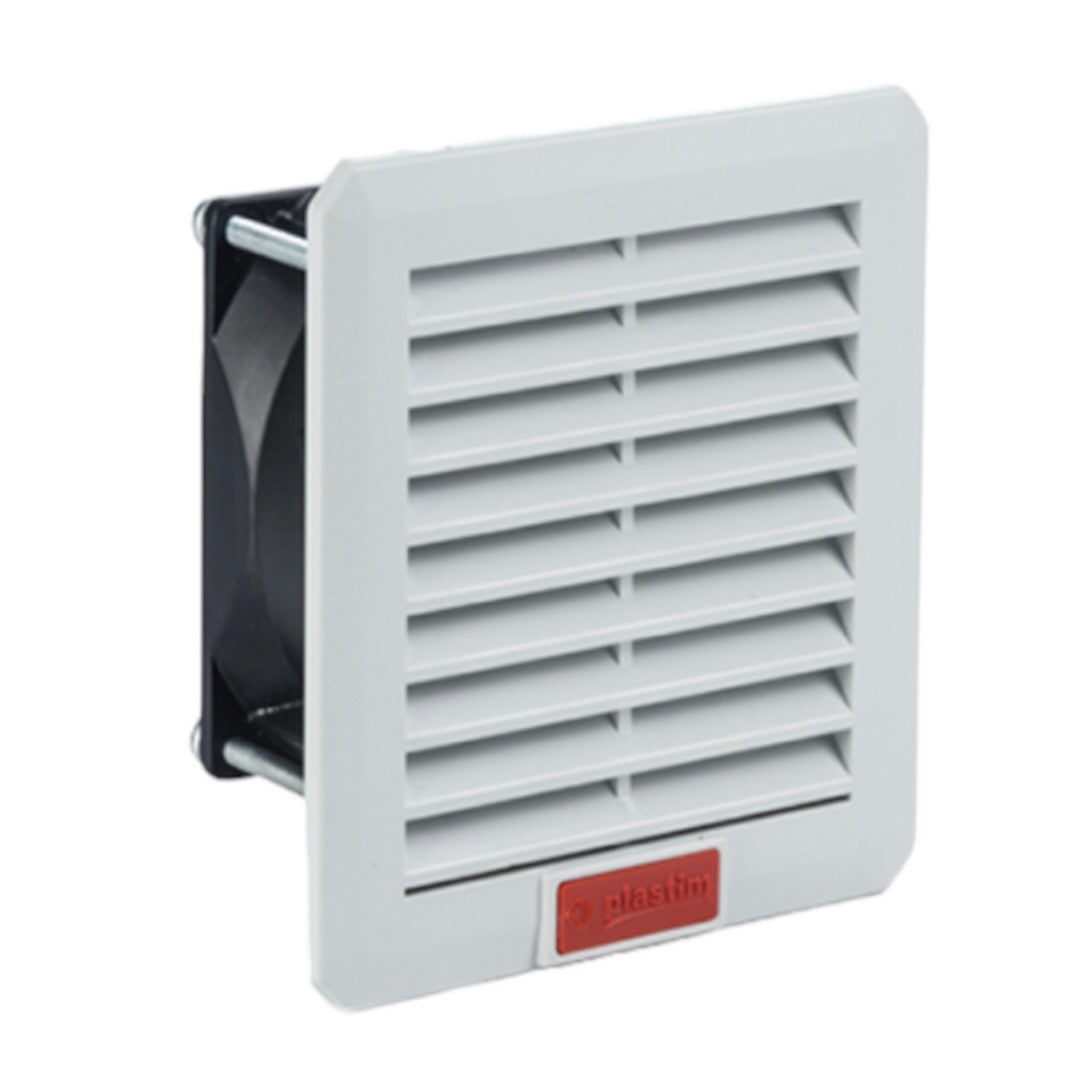

Ventilation grille with fan and filter, size 120x120 mm, for installation in electrical cabinets, automation enclosures, ATMs, or gaming terminals. PTF1000, manufacturer Plastim (Turkey)

It is used for drawing in outside air into electrical cabinets, ATMs, payment terminals, slot machines, automation enclosures, control panels, and pumping stations. It is usually installed in the side walls of cabinets to maintain IP.

External dimensions: 120x120x58.5 mm
Installation dimensions: 92x92 mm
Volumetric flow: 30 (41) m3/h
Noise level: 28 (31) dB(A)
Bearing: sleeve bearing
Operating voltage: 220-230 VAC, 50/60 Hz
Current consumption: 0.08 (0.07) A
Rated power: 14 (13) W
Electrical connection: Lead wire
Flow direction: Outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection degree: IP54
Plastic material: UL94 V0 ABS Flame Retardant
Sealing: self-adhesive
Color: RAL 7035 (RAL 7032 on request)
Weight: 0.4 kg
Installation: quick attachment

To ensure automatic air exchange and maintain temperature with this fan, you will need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.

The ventilation grille is equipped with a replaceable filter. This filter insert can be easily replaced or cleaned and reused.
