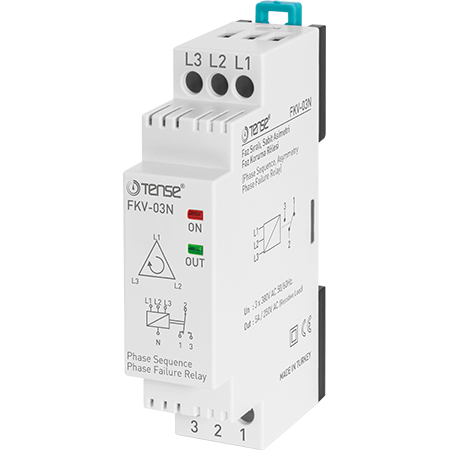

Fázové riadiace relé FKV-03N - TENSE
Popis produktu:
FKV-03N je trojfázové regulačné relé určené na ochranu elektromotorov pred nesprávnym sledom fáz, výpadkom fáz a nadmernou asymetriou. Relé nemá kontrolu nulového vodiča a asymetria je stanovená na 40 %.
Relé je ideálne pre priemyselné aplikácie, kde sa vyžaduje rýchla a spoľahlivá ochrana motorov pred poškodením spôsobeným nesprávnym zapojením alebo kolísaním napätia.
Algoritmus činnosti
-
Normálna prevádzka:
-
Všetky tri fázy sú prítomné.
-
Poradie fáz je správne.
-
Nesymetria napätia je v tolerančnom rozsahu ≤ 40 %.
-
Relé je v prevádzkovom stave - kontakty 2-3 sú zopnuté, indikátory PWR a RLY svietia.
-
-
Chybný stav:
-
Ak napätie niektorej fázy prekračuje prípustné limity alebo je sled fáz nesprávny:
-
Kontakty 2-3 sa rozpojia,
-
kontakty 1-2 sa zapnú,
-
indikátor RLY zhasne.
-
-
-
Návrat do normálneho stavu:
-
Po obnovení správneho napätia a sledu fáz sa relé automaticky prepne späť do prevádzkového stavu.
-
Technické parametre
-
Napájacie napätie: 3 × 380 V AC
-
Prípustná asymetria: 40 % (pevná)
-
Kontakt: SPDT, max. 5 A / 250 V AC
-
Indikácia: LED PWR a RLY
-
Montáž: lišta DIN
-
Prevádzková teplota: -20 °C až +55 °C
-
Spotreba energie: <6 VA
-
Hmotnosť: <150 g
