Roof fan, distribution fan, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500
Failed to load pickup availability
Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.
Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.
By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.
On invoice - this payment option is available to partners who have a framework agreement with our company.
If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.
In the event of a complaint, no fee is charged for returning the goods.

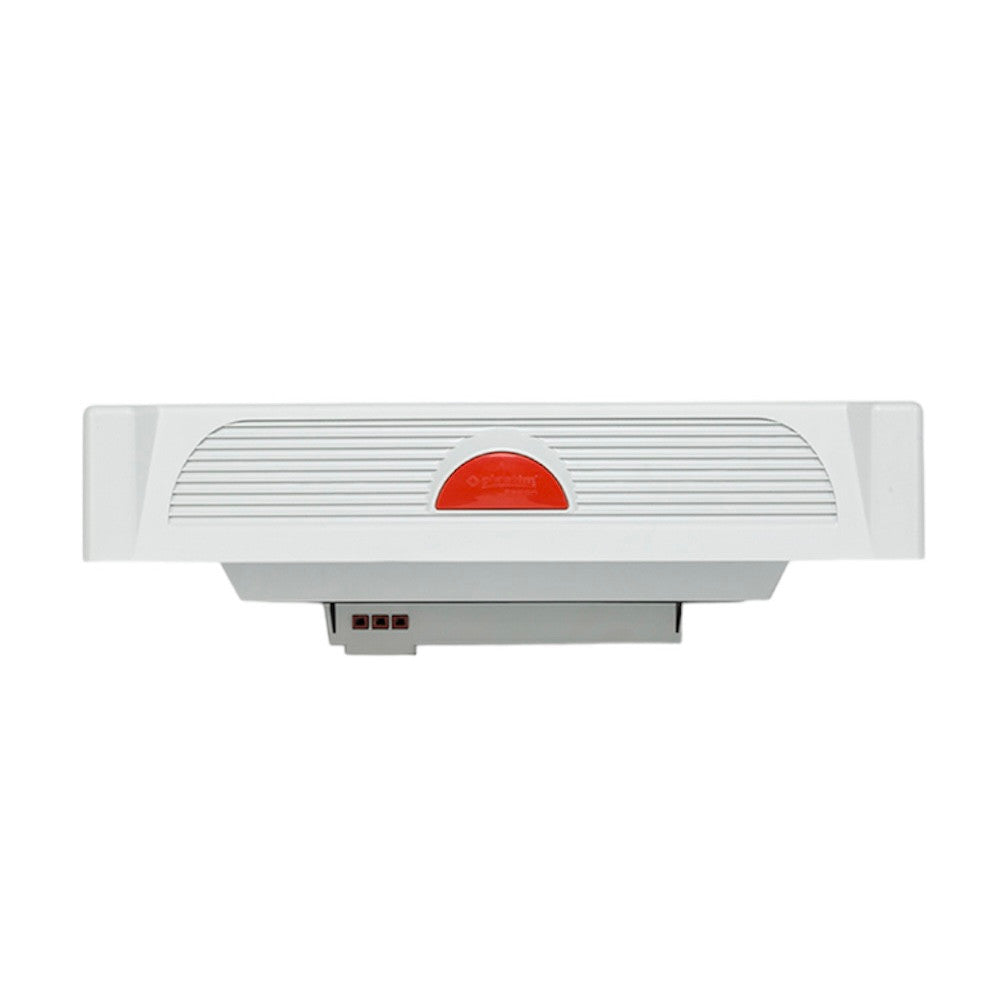

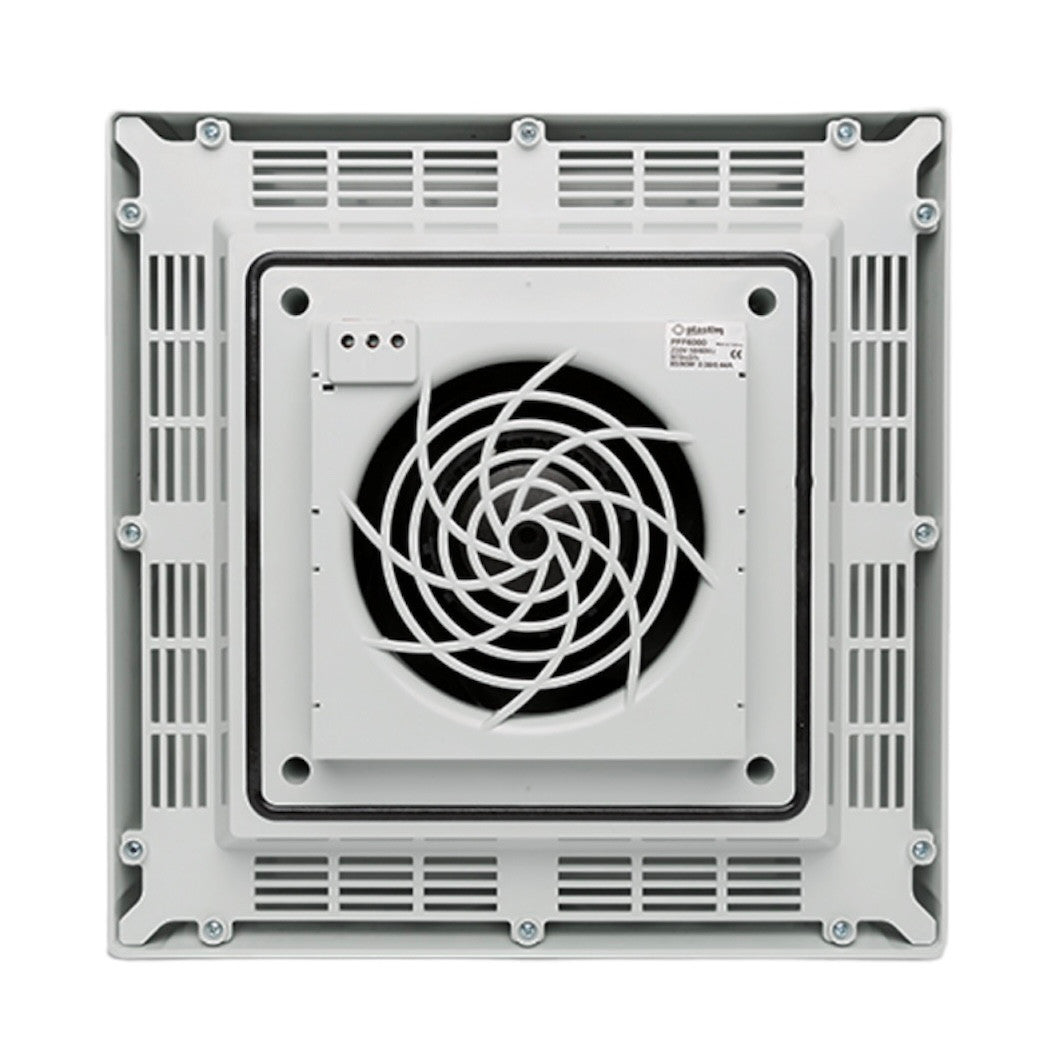

Fan in a housing for installation on the roof of the cabinet, PTS5500, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a cabinet or automation panel and is usually used with a thermostat PTVT or PTHVT. It is installed on the roof of the cabinet and allows for the most efficient removal of excess hot air from the volume of the cabinet.
Although the fans have the same overall dimensions, they differ in the volume of air discharged and noise level.
- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178 mm
- Volumetric flow: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: Ball bearing
- Lifetime: 50000 h
- Operating voltage: 220-230 VAC, 50/60 Hz
- Current consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 3-pole terminal 2.5 mm2
- Flow direction: Air flow directed from inside out of the cabinet
- Operating temperature: -10/+70 °C
- Degree of protection: IP54
- Plastic material: ABS UL94 V0 Flame retardant
- Sealing: Polyurethane seal
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: quick attachment
To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.
