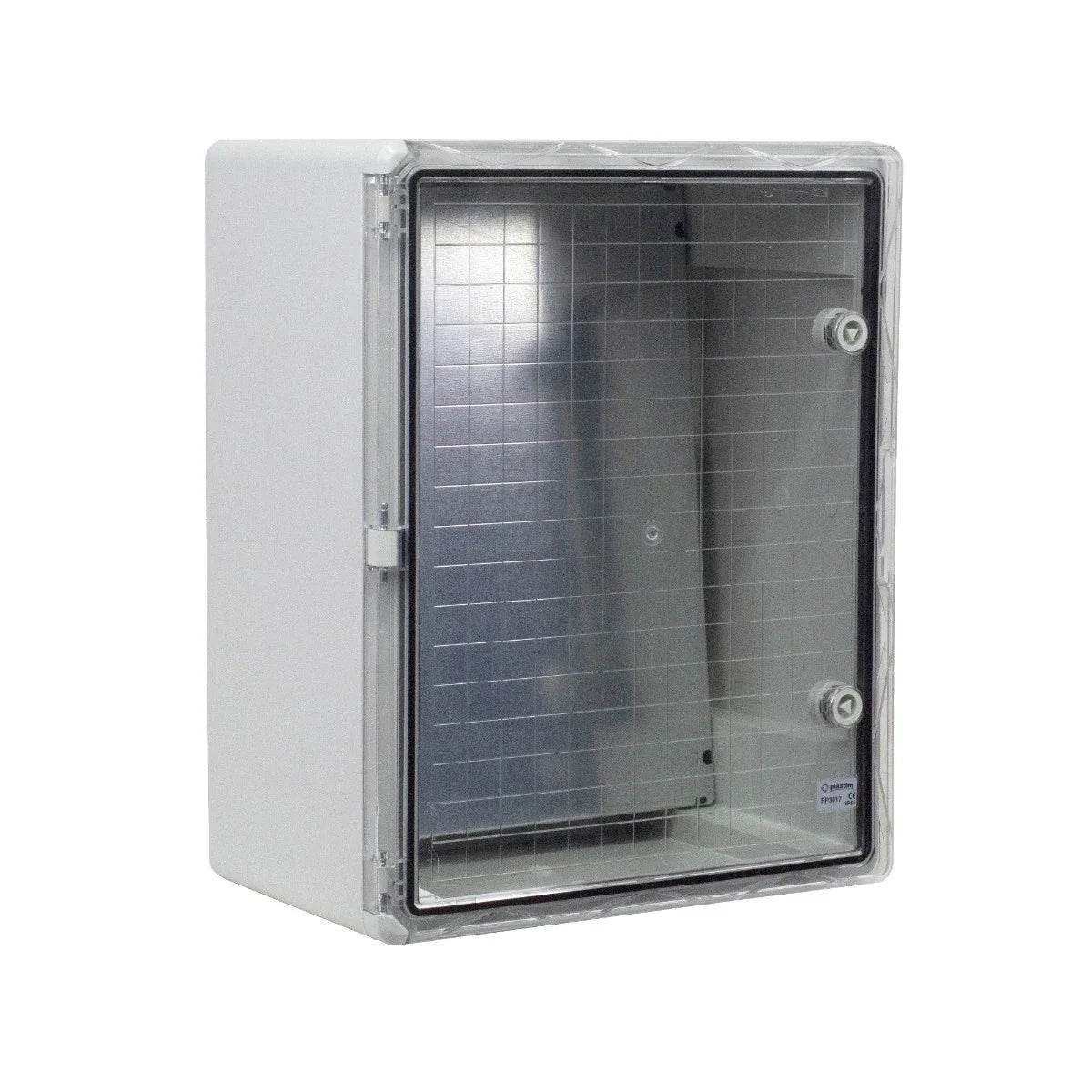

Plastic distribution box, transparent doors, seam 400x500x240mm, IP65, PP3017 Plastim

New plastic waterproof enclosures manufactured by the Turkish company Plastim open a new chapter in the use of plastic protective enclosures for automation and power distribution tasks.

• Reinforced legs with metal pin

• New cabinet design with corner reinforcements and increased door thickness and overall product thickness.

• Extended temperature range in which the protector retains all its enhanced properties -35/+60C

• Fully corrosion-resistant lightweight solid galvanized metal mounting panel
• Can be equipped with transparent doors and DIN rails reinforced with metal pin legs;

MAIN TECHNICAL FEATURES

• Mounting panel: made of galvanized steel with a thickness of 1 mm
• Material: HB ABS halogen-free + polycarbonate (door).
• Width: 400 mm
• Height: 500 mm
• Depth: 240 mm
• Color: light gray RAL7035
• Protection: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35 °C + 65 °C
• Weight: 3.00 kg
