Vendor: TENSE

RGT-MT18 - reactive power regulator 18 levels +TCR with RS485 ModBus

Barcode: RGT-MT18
€334,08
€377,95
€334,08
excl. VAT: €271,61
Out of stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

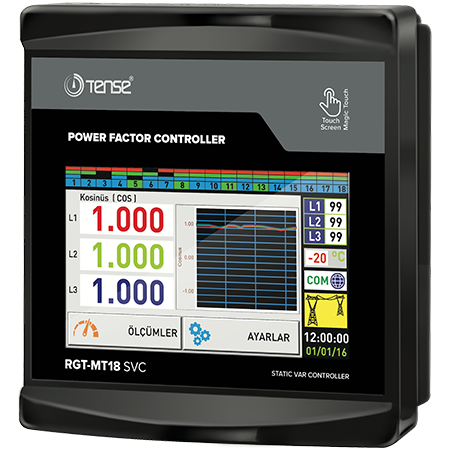

18 steps + TCR Power factor regulator for symmetrical/asymmetrical networks with 5" touch screen and RS-485 (TENSE)

The relay for regulating reactive power is designed to reduce reactive power (inductive and capacitive) that is not used in the load and is drawn from the grid. When inductive power is drawn from the grid, it intervenes by drawing a capacitor with the appropriate value. If capacitive power is drawn from the grid, it intervenes by drawing a shunt with the corresponding value. In this way, it aims to reduce inductive/active and capacitive/active rates of the system. It is designed to provide more adequate compensation in unbalanced inductive and capacitive systems with RGT-MT18 TCR step.

  • Generator input and generator compensation

  • Voltage, harmonic current/voltage, inductive and capacitive alarm output

  • The rise time, discharge time, and stabilization time can be set

  • Remote communication via RS485 (RS485 ModBus RTU)

  • Option to connect single-phase, two-phase, and three-phase capacitors and shunts

  • Harmonic voltage and current can be monitored up to the 61st harmonic

  • It is possible to monitor total energy (import/export)

  • It is possible to monitor the THD-V and THD-I values for each phase

  • Creation of power analysis (20 samples 9999 min.) - for capacitor selection

  • Temperature alarm output

  • Registration of consumption (active, reactive, and apparent power and current consumption)

  • It is possible to monitor the minimum, maximum, and average values of current and voltage for each phase

  • Current date and time
