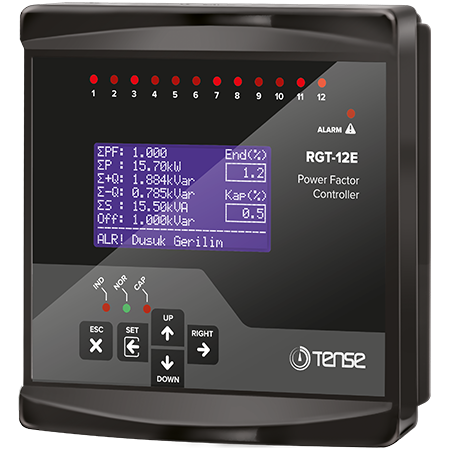

12 steps + TCR power factor regulator with 2.9" graphic LCD display (TENSE)

The reactive power regulator RGT-12E (TENSE ) is a fully automatic device for optimal switching of compensation stages.

Digital processing of the values measured by the regulator ensures high accuracy in evaluating the power factor, current, and voltage.

The installation of the device is fully automatic - the regulator determines the size of the individual connected compensation stages by itself. These parameters can also be entered manually.

The regulator turns the compensation stages on and off so that reactive power is regulated with a minimum number of switching operations. The regulator also takes into account the even loading of individual stages and preferentially switches those stages that have been without voltage the longest and where the residual charge is minimal. During the regulation process, the compensation stages are continuously monitored in parallel - faults and value changes are detected, temporarily deactivated stages are periodically tested, and if necessary, are reintroduced into the regulation process.

Generator input and generator compensation
It is possible to set the rise, discharge, and stabilization times
Single-phase, two-phase, and three-phase capacitors and shunts can be connected
Harmonic voltage and current can be monitored up to the 31st harmonic
It is possible to monitor total energy (import/export)
It is possible to monitor the THD-V and THD-I values for each phase
Creation of power analysis (20 samples 9999 min.) - for capacitor selection

Manual

https://files.principalelektrik.org/RGT-12SVC%2C%20RGT-18SVC%2C%20RGT-12E%2C%20RGT-18E%2C%20RGT-12E%20SVC%2C%20RGT-18E%20SVC%20and%20RGT-18G%20USER%20MANUAL%20%28SKU%20RGT-12E%2C%20SKU%20RGT-12%28SVC%29%29.pdf
