ONKA 6mm2 spring connector terminal block for DIN rail 2-wire blue, 1020037

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

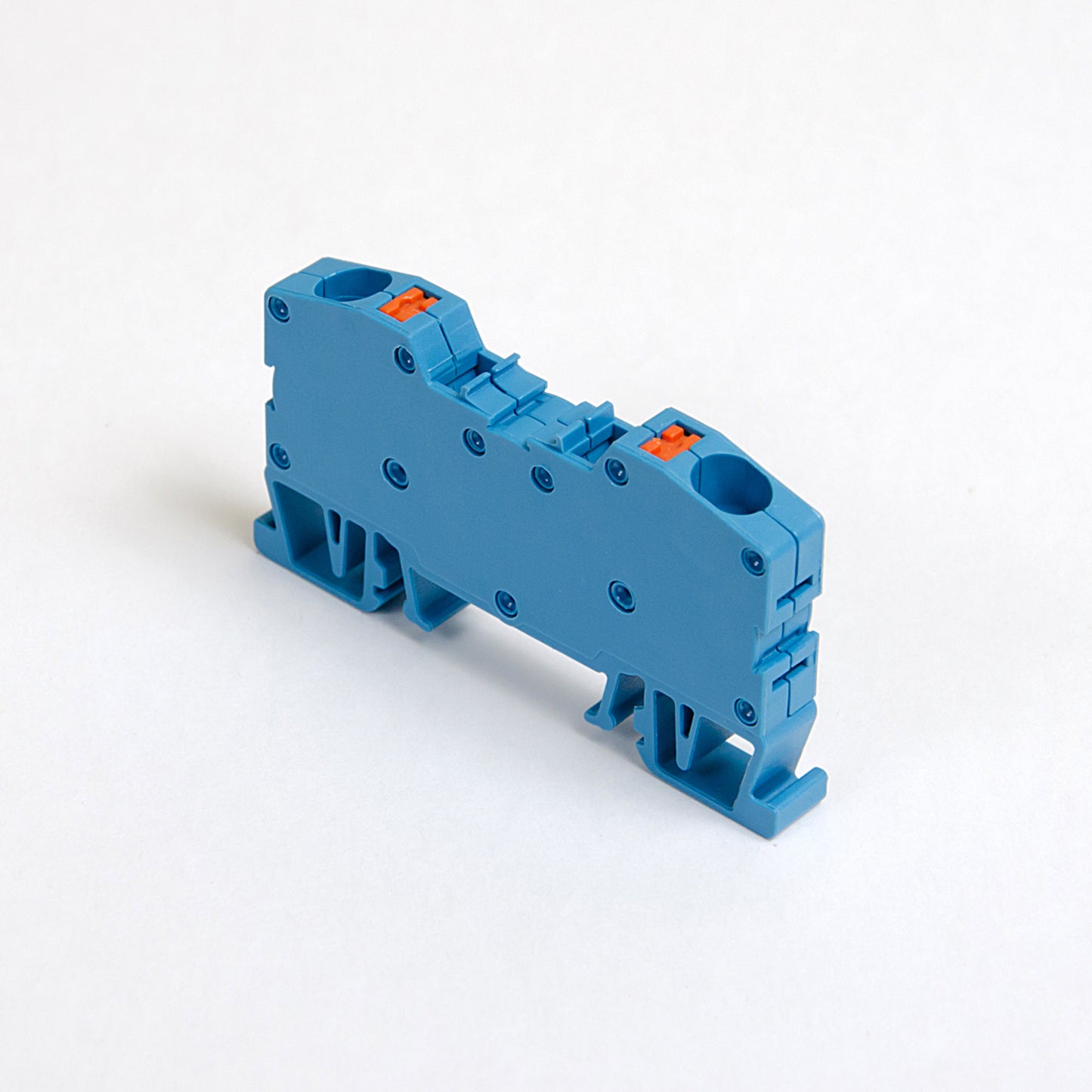

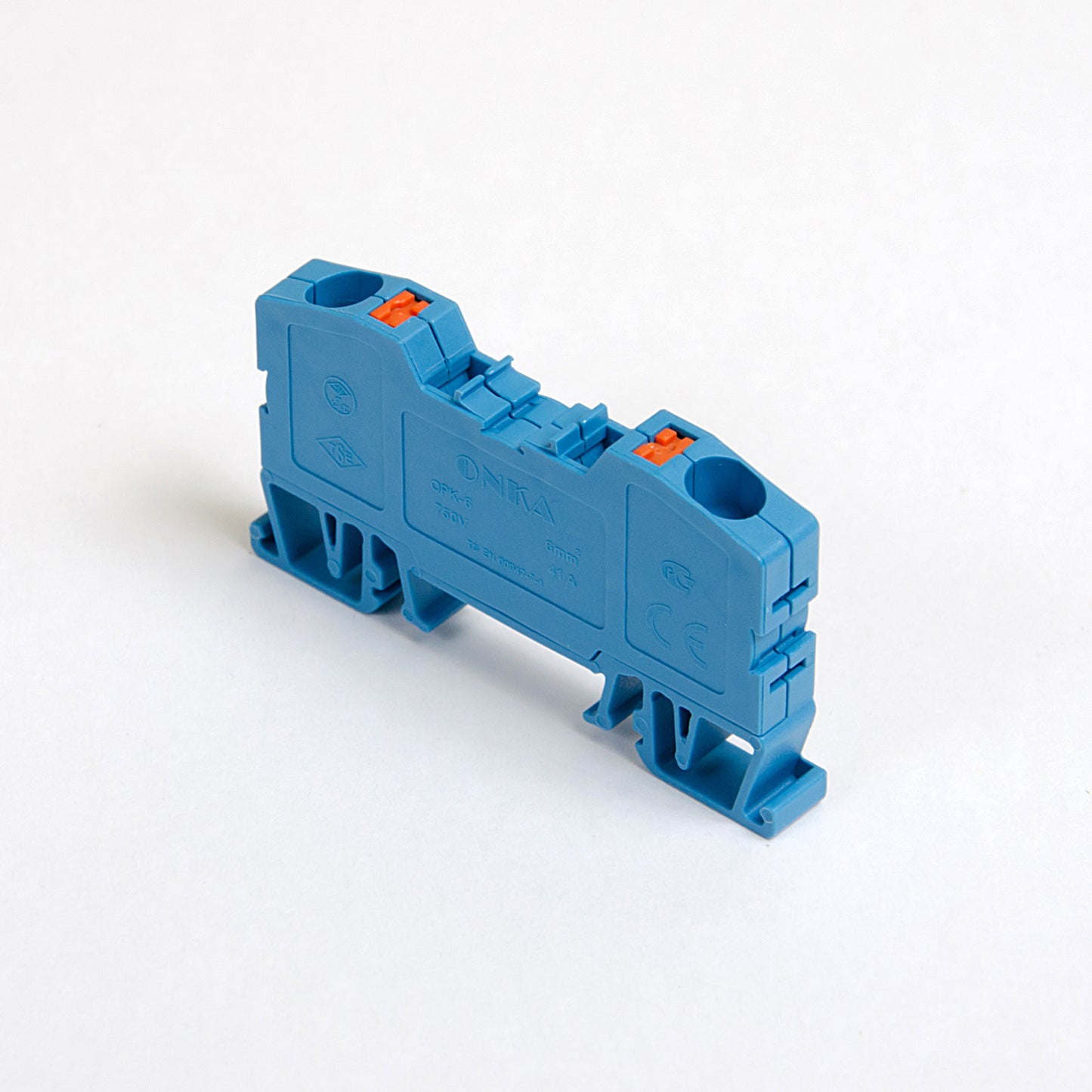

Spring connector for bus / DIN rail terminal 2-wire, plug-in contact, blue color, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector is made of high-quality materials and guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected individual conductor up to: 6 mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / upper
Cable strip length: 12 mm
Type of electrical connection: spring terminal / plug-in contact
Rated voltage: 750 V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
