ONKA 25mm2 Screw Terminal Block for DIN Rail 2-Wire Blue, 1010065
- Regular price
- €2,08
- Regular price
-
- Sale price
- €2,08
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Threaded connector for bus / DIN rail terminal 2-wire blue, ONKA, made in Turkey
The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector made from high-quality materials ensures long-term use and resistance to mechanical damage.

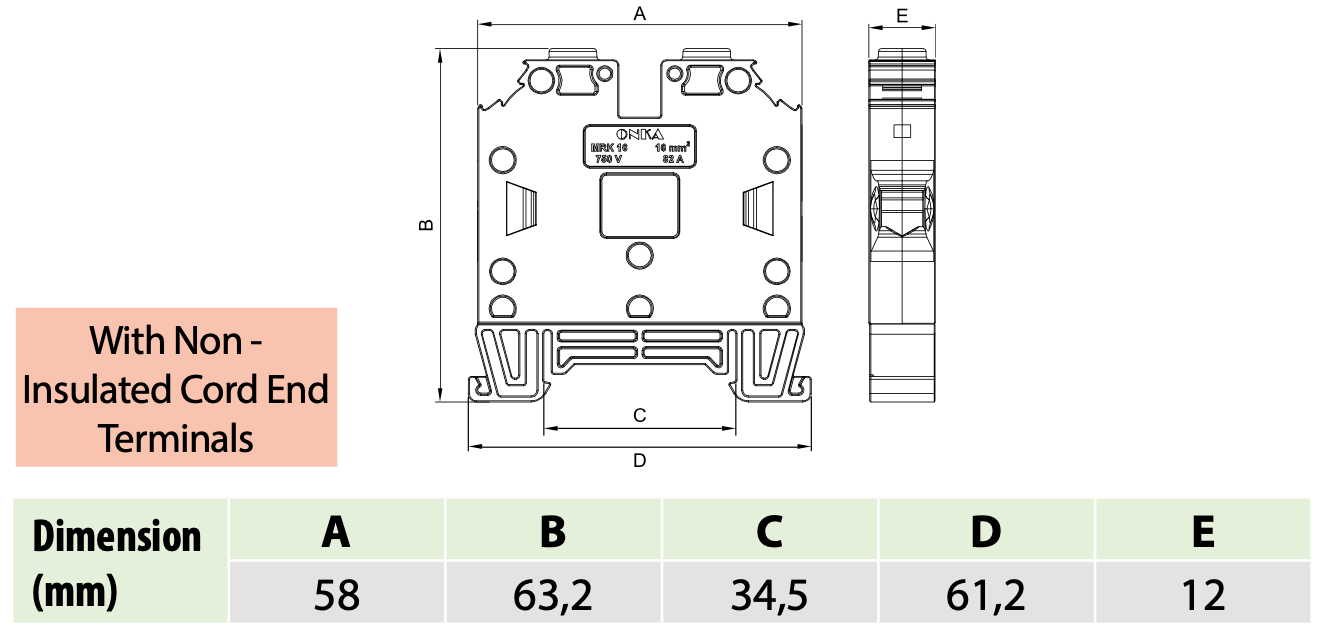

Technical parameters
Cross-section of the connected individual conductor up to: 25 mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Material of contacts/jumper: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Rated voltage: 750 V
Rated current: 101 A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
