ONKA 2.5 mm2, 2-level terminal block for DIN rail, 4-wire, gray, 1020379

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

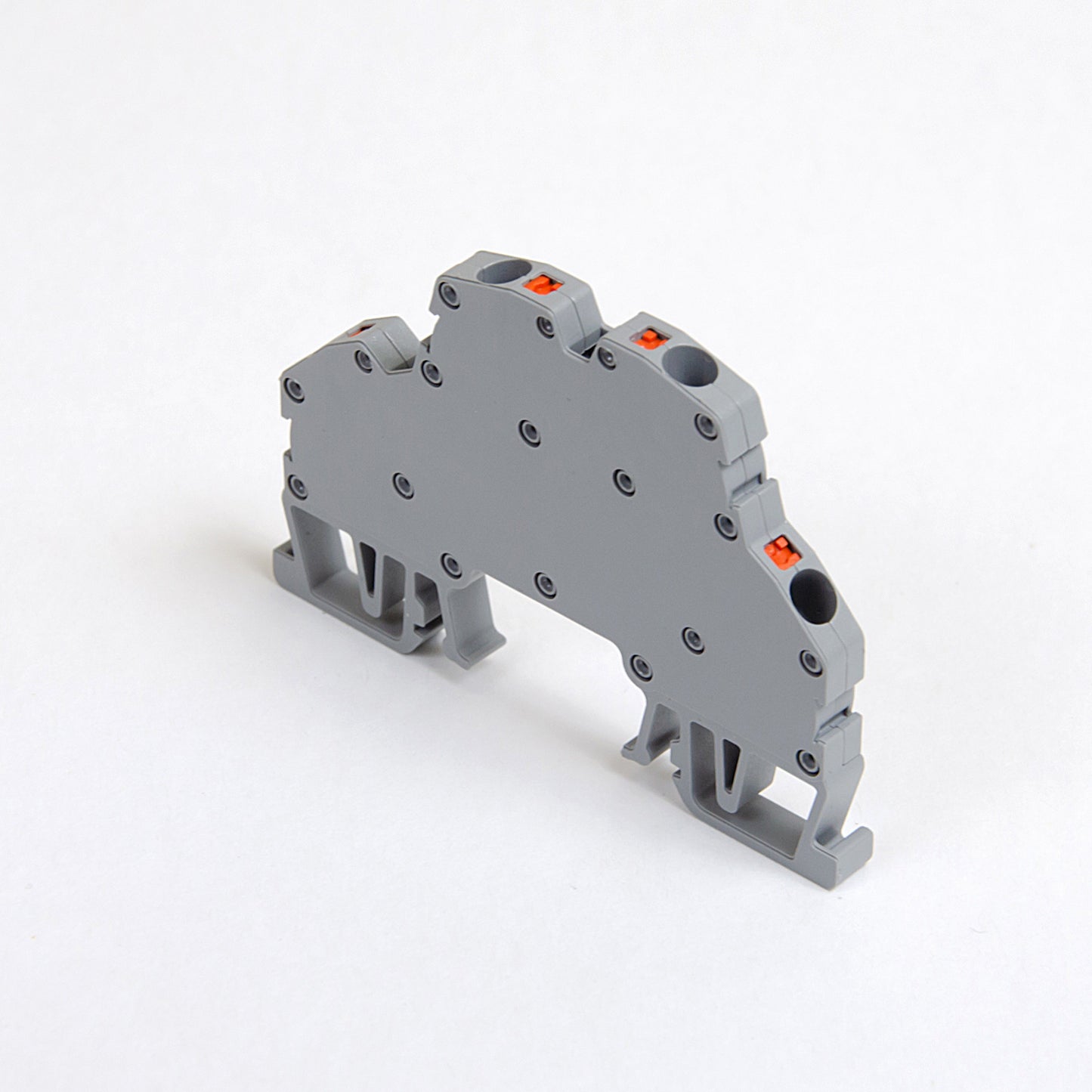

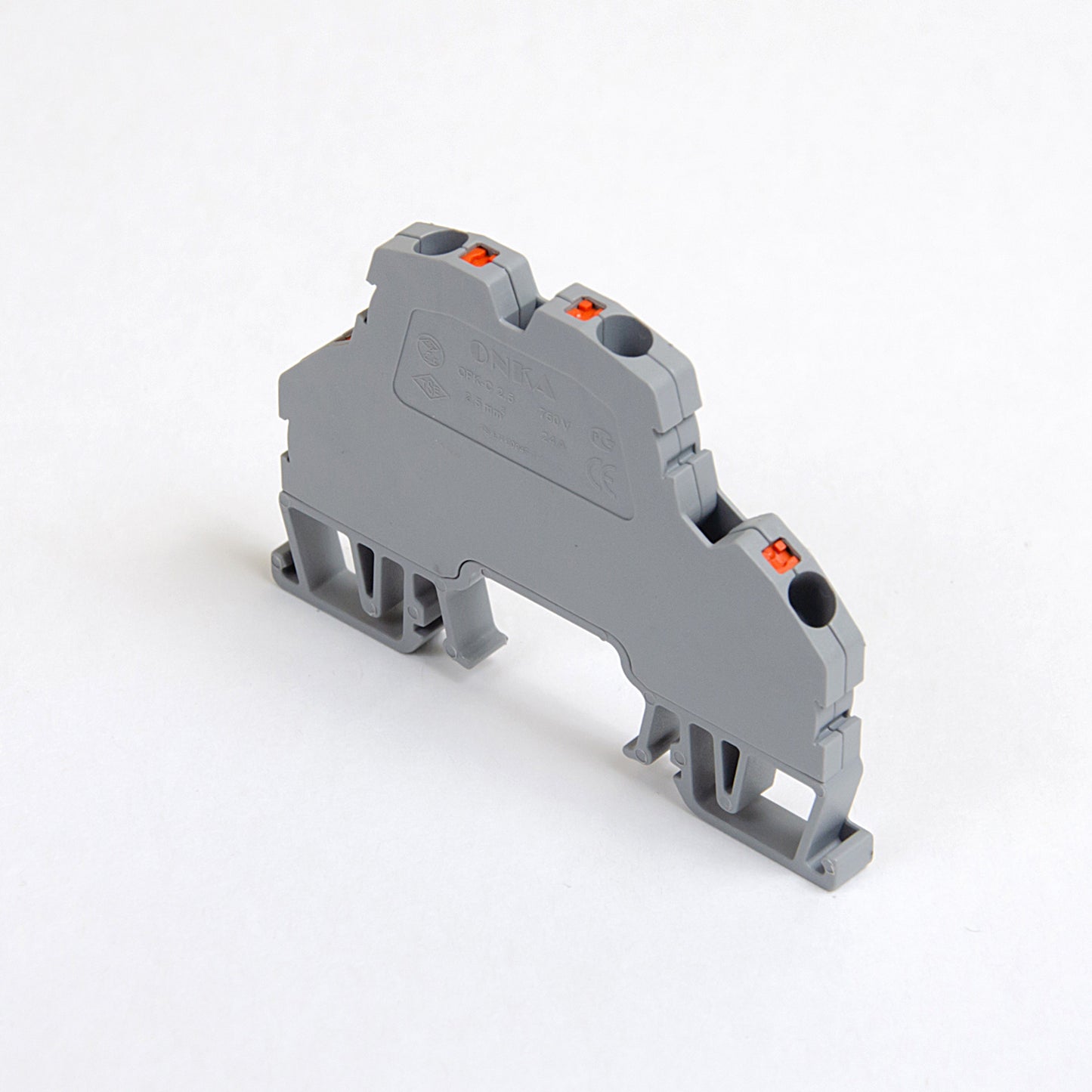

2-pair spring connector for bus / 4-wire terminal for DIN rail, gray color, ONKA, made in Turkey

Compact installation rail connectors ONKA provide great possibilities for connecting any wire of various cross-sections. The transparent cover allows for easy inspection of the correct arrangement of wires. Original quick connectors ONKA represent convenience in installation and 100% reliability of connection.

Technical parameters

Cross-section of the connected individual wire up to: 2.5 mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material of contacts/jumper: CK45 steel/copper
Connection position: top / upper
Cable strip length: 9 mm
Type of electrical connection: spring terminal
Rated voltage: 750 V
Rated current: 25A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
