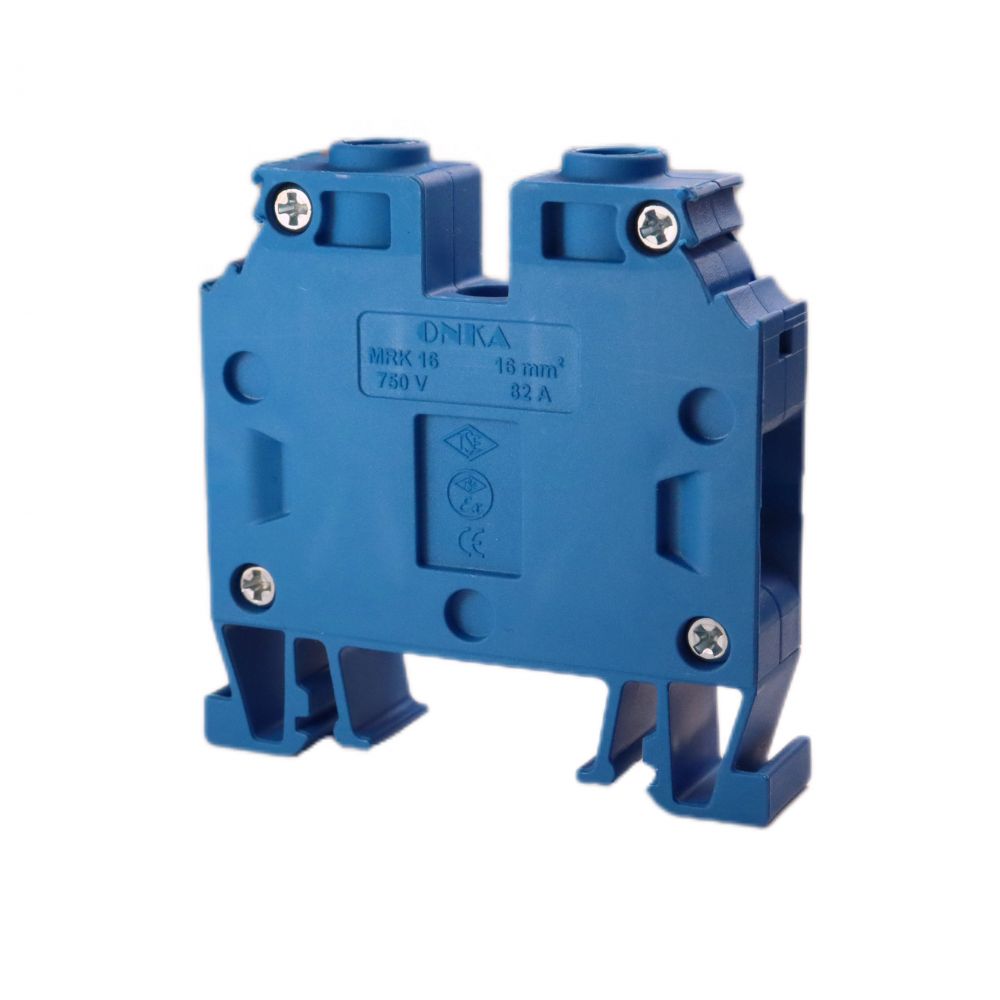

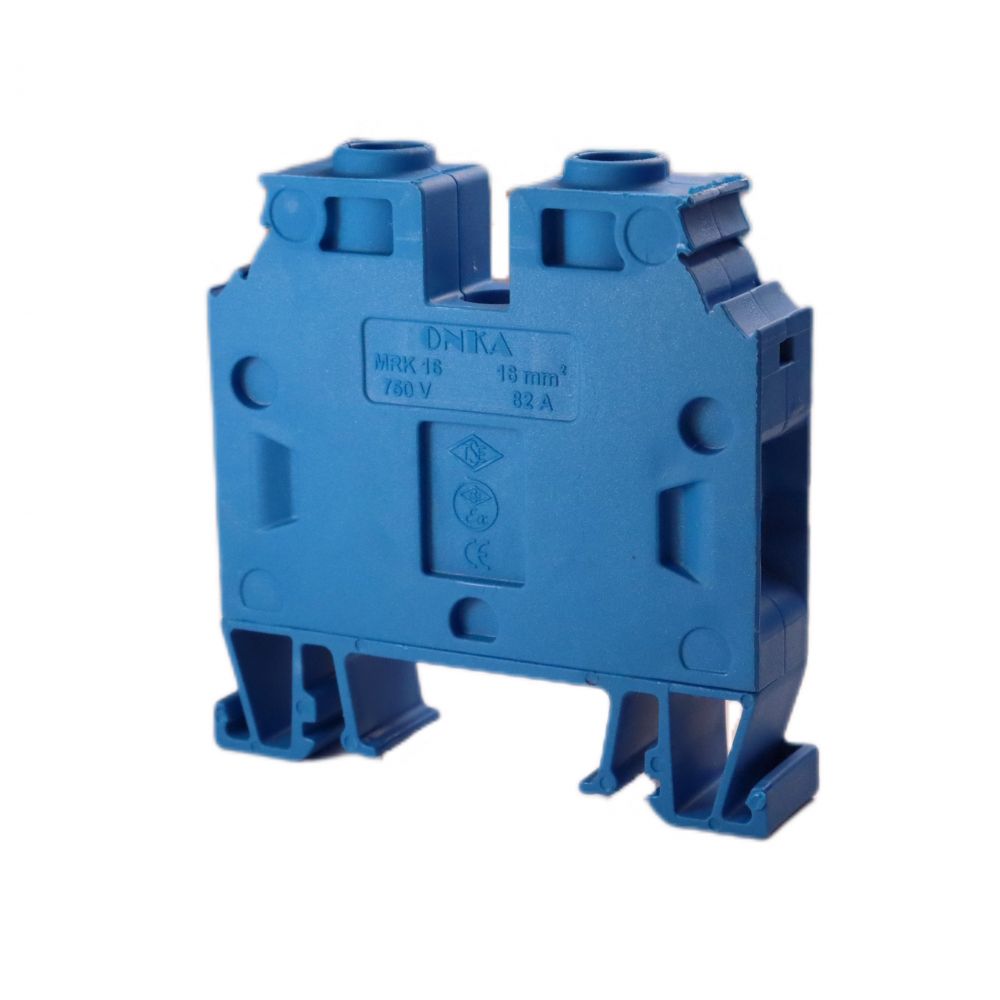

ONKA 16mm2 Screw Terminal Block for DIN Rail 2-Wire Blue, 1010055

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

Threaded connector for bus / DIN rail terminal 2-wire blue, ONKA, made in Turkey

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector made from high-quality materials ensures long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected individual conductor up to: 16 mm2
Color: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 2.0 Nm
Connection position: side / side
Cable strip length: 18 mm
Type of electrical connection: screw terminal
Rated voltage: 750 V
Rated current: 76 A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN rail mounting 35 mm
Standard: EN-60947-7-1
