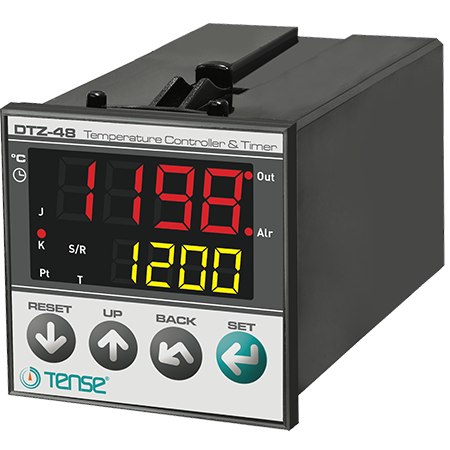

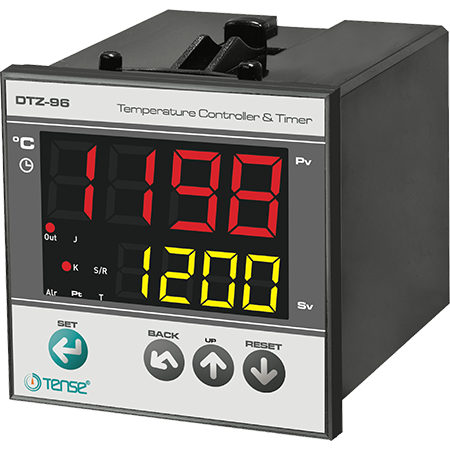

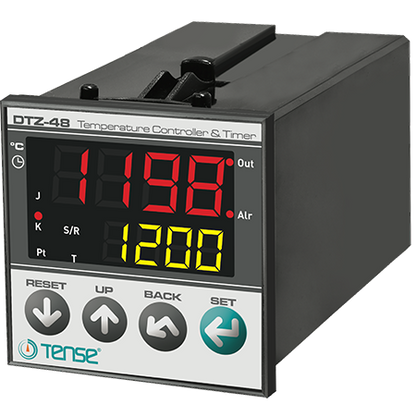

PID temperature controller for panel mounting with built-in timer, measurement range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning, and ventilation systems, building automation, industrial equipment.

The temperature controller is implemented using on/off or PID control. The controller offers self-optimization, which prevents overwriting of process values.

• Automatic tuning of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Option to select the type of control: P, PI, PD, PID, or ON-OFF

• Automatic removal of 'overshoot' in PID mode

• Anti-windup

• Delay on for OUT in cooling mode

• Password protection

• EEPROM memory for storing settings

• Relay outputs OUT and ALARM (NO+NC) 250 VAC, 2A (ALARM ON only for DTZ-48)

The measurement range depends on the sensor and can be set using the buttons on the temperature controller.

The display of the temperature controller is a high-contrast display that can be read accurately only under poor conditions. In addition to the control output, the temperature controller has another alarm relay that will close a potential-free contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - type J thermocouple Fe-Const (metric 6/8) with a temperature measurement range of: -100 °C - +600 °C. It can be with a cable length of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m.
