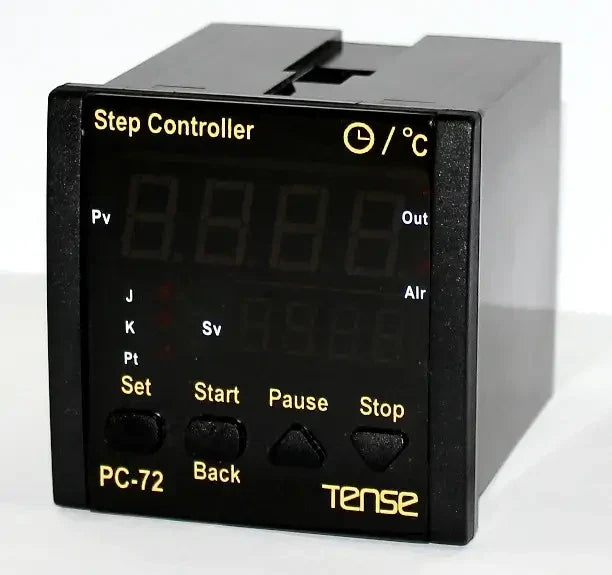

PID temperature controller, for panel and machine/control panel mounting, relay outputs, measurement range -100°C ... +1750°C, resolution / step 0.1ºC, 20 temperature degrees / heating degrees (made in Turkey, TENSE)

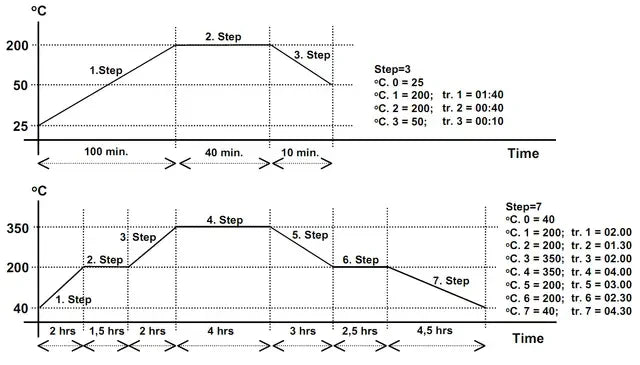

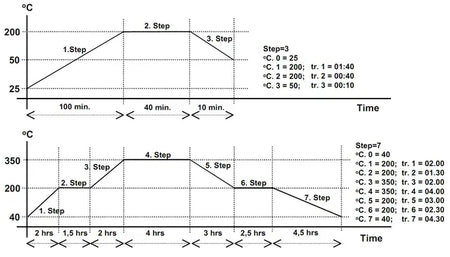

As you can see from the provided graphs, unlike cheap analogs, the TENSE thermostat allows you to set the set points of temperature and the time it takes to reach the set points. This significantly simplifies the programming process. Additionally, the PID mode allows maintaining the system temperature as close as possible to the set points.

Another important difference compared to competitors is the simultaneous display of the current temperature, desired temperature, step of the desired value, and time. The placement of the START/STOP/PAUSE/SET control buttons on the front panel is very convenient - it ensures quick and efficient process control.

Temperature control is performed using on/off control or PID control. The controller offers self-optimization, which prevents process overshoot.

• Automatic tuning of PID parameters

• Up to 20 temperature/heating settings

• Each step is programmed for up to 18 hours of operation

• Sensor type: T/C (J,K,T,S,R), Pt100
• Option to select the type of control: P, PI, PD, PID, or ON-OFF.

• Automatic removal of 'overshoot' in PID mode

• Anti-windup

• Delay on for OUT in cooling mode

• Password protection

• EEPROM memory for storing settings

• Relay outputs OUT (NO+NC) 250 VAC, 2A

The measurement range depends on the sensor and can be set using the buttons on the temperature controller.

Don't forget to order our temperature sensors - type J (metric 6/8) thermocouples with a temperature measurement range of: -100 °C - +600 °C. Cables are available in lengths of 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m, and 5 m ---> link to the product page
