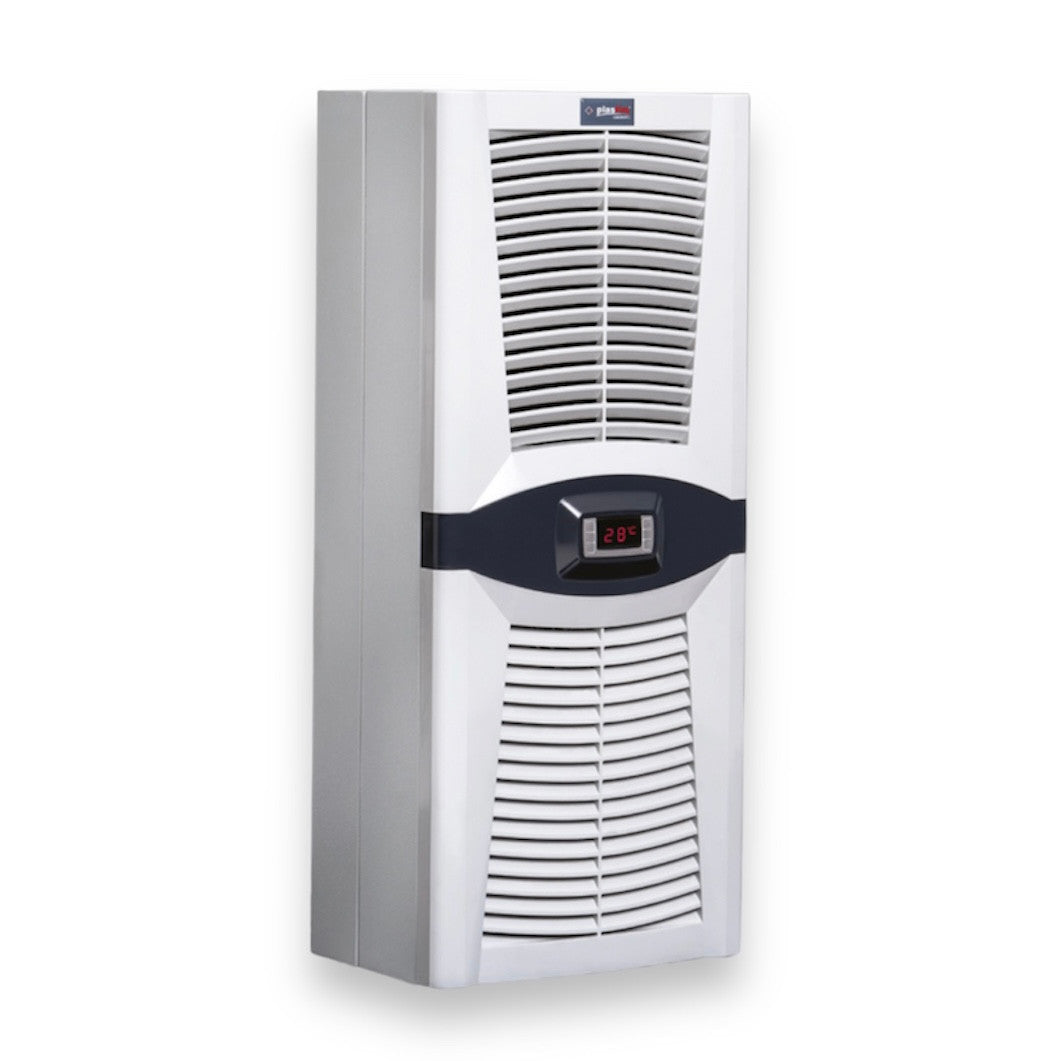

The "Design Series" air conditioning unit for enclosures / cooling devices 850 Watt / 2990BTU for side or wall mounting of enclosures and automation panels.
The air conditioning for the PAD08500.01 (PLASTIM) enclosures is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the enclosure doors.
The delivery includes everything necessary for the installation of the air conditioning for the switchboard - seals, drainage pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0850.01 |
| Cooling Capacity L35 / L35 | 850W / 2900BTU |
| Operating Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Starting Current | 6A |
| Operating Current | 1.7A |
| Fuse | 10A |
| Power Consumption | 394W |
| Operating Range | 0-55 °C |
| Factory Thermostat Setting | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Indoor Circuit | 340 m³/h |
| Max. Air Volume Outdoor Circuit | 505 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Sound level | 76 dB |
| Degree of protection (internal circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
