Air conditioning for switchboards / Cooler 550W, PAD0550.01, Plastim
- Regular price
- €1.282,80
- Regular price
-
- Sale price
- €1.282,80
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

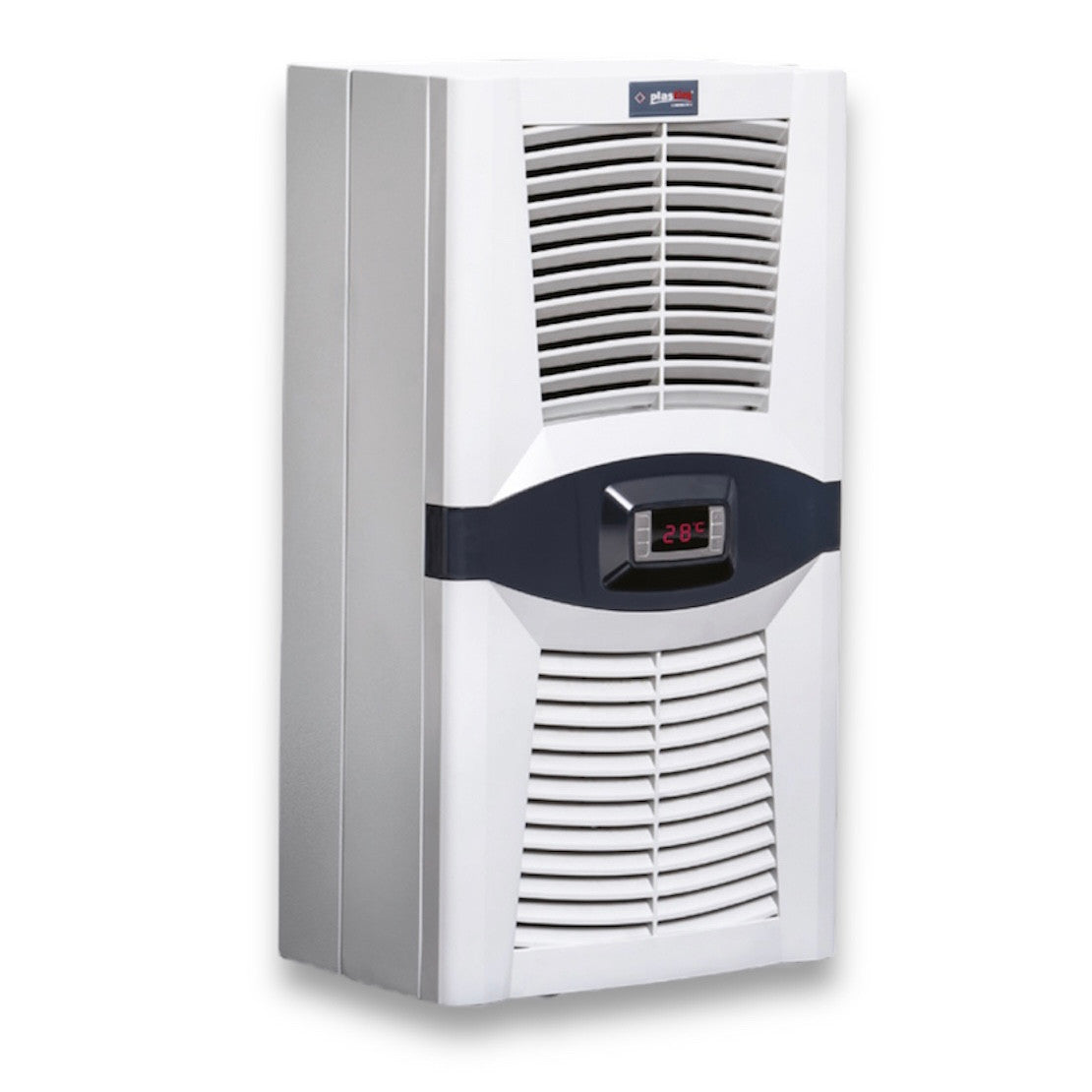

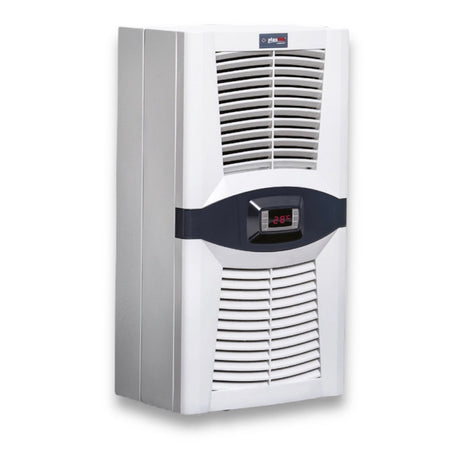

Air Conditioning Device "Design Series" for Cabinet / Cooler 550 Watt / 1900BTU for side or wall mounting of the cabinet and automation board.
Air Conditioning PAD0550.01 (PLASTIM) for cabinets is equipped with the latest HIGHLY open-type rotary compressor, Dixell thermostat, condensate evaporator, and limit switch for controlling the opening of the cabinet doors.
The delivery includes everything necessary for the installation of the air conditioning for the cabinet - seals, drainage pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Starting Current | 1.2A |
| Operating Current | 1.1A |
| Fuse | 6A |
| Power Consumption | 330W |
| Operating Range | 0-55 ° |
| Factory Thermostat Setting | 35 ° |
| Differential | 4 ° |
| Max. Air Volume Indoor Circuit | 340 m³/h |
| Max. Air Volume Outdoor Circuit | 505 m³/h |
| Refrigerant Type | R134a |
| Refrigerant Quantity | 245gr |

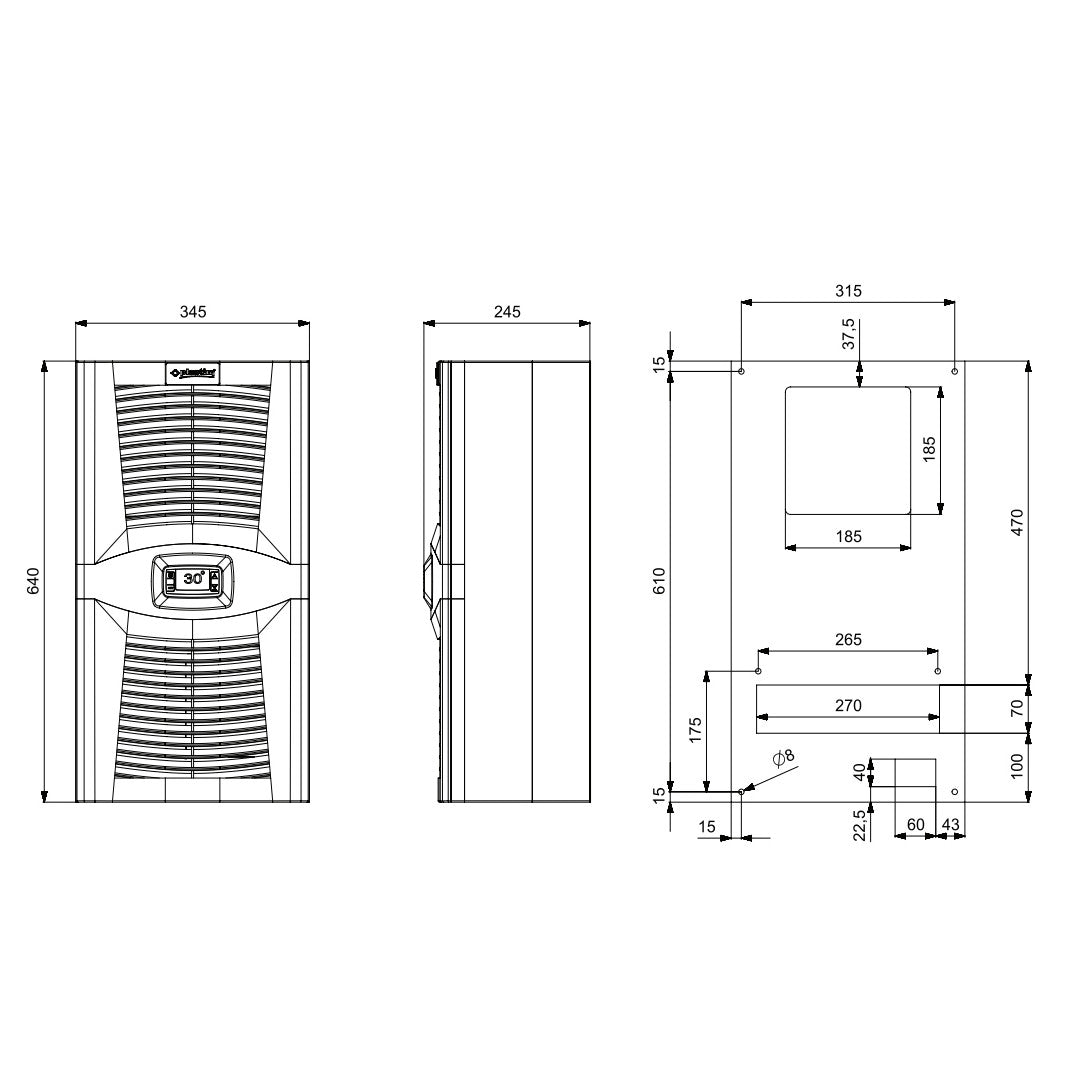

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Sound Level | 76 dB |
| Protection Degree (Indoor Circuit) | IP 54 |
| Protection Degree (Outdoor Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mounting |
Online payment by card – after completing the order, you will be redirected to the payment gateway, and a confirmation of payment will be sent to your email.
Cash on delivery – you will pay the amount according to the payment regulation to the courier of the transport company.
Bank transfer – you will receive a pro forma invoice at your email no later than the next working day, on which you will find the account number to enter when making the payment.
On invoice – this payment option is available to partners who have a framework agreement with our company.
If you would like to use the last two options, please contact our manager, who will provide you with instructions on how to receive an invoice with VAT or without VAT.
The electrical devices supplied by us meet high quality standards, have a 24-month warranty, and comply with all EU requirements.
We also offer free shipping (for orders over €100), a flexible discount and promotion system. The technical knowledge and experience of our employees allow us to provide high-quality consulting and, if necessary, offer alternatives for electrical products.
The electrical equipment we supply meets high quality standards, is covered by a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of goods is not charged.
