Air conditioning for distribution boards / Cooler 380W, PAD0380.01, Plastim

In stock - 4 items available
SKU: PAD0380.01
Common price €1.076,40 vrátane DPH

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

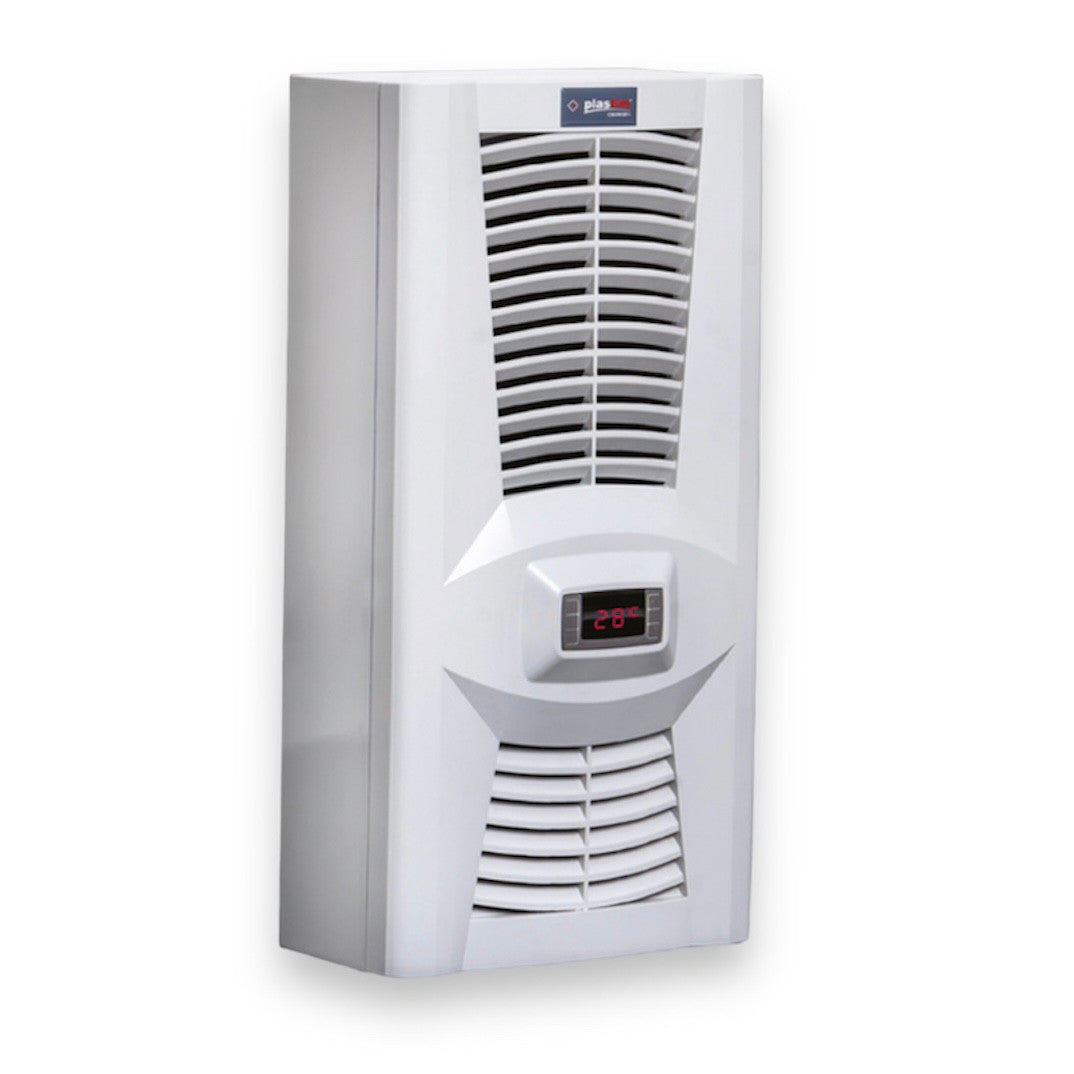

Air conditioning unit "Design Series" for distribution boards / cooling devices 380 Watt / 1300 BTU for side or wall mounting of distribution boards and automation devices.

The air conditioning PAD0380.01 (PLASTIM) for switchboards is equipped with the latest open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensing evaporator, and a limit switch for controlling the opening of the switchboard doors.

The delivery includes everything necessary for the installation of the air conditioning for the switchboard - seals, drainage pipe, mounting screws, power connector.

TECHNICAL DATA PAD0380.01
Cooling Capacity L35 / L35 380W / 1300BTU
Operating Voltage 230 VAC
Frequency 50/60 Hz
Starting Current 3.7A
Operating Current 1.1A
Fuse 5A
Power Consumption 325W
Operating Range 0-55 °C
Factory Thermostat Setting 35 °C
Differential 4 °C
Max. Air Volume Indoor Circuit 340 m³/h
Max. Air Volume Outdoor Circuit 340 m³/h
Refrigerant type R134a
Refrigerant quantity 120gr
Dimensions 560x285x150mm
Weight 15 kg
Sound level 75 dB
Degree of protection (internal circuit) IP 54
Degree of protection (external circuit) IP 34
Color RAL7035
Compressor HIGHLY/HITACHI
Compressor type Rotary
Fans EBMPAPST
Mounting method Wall mounting
