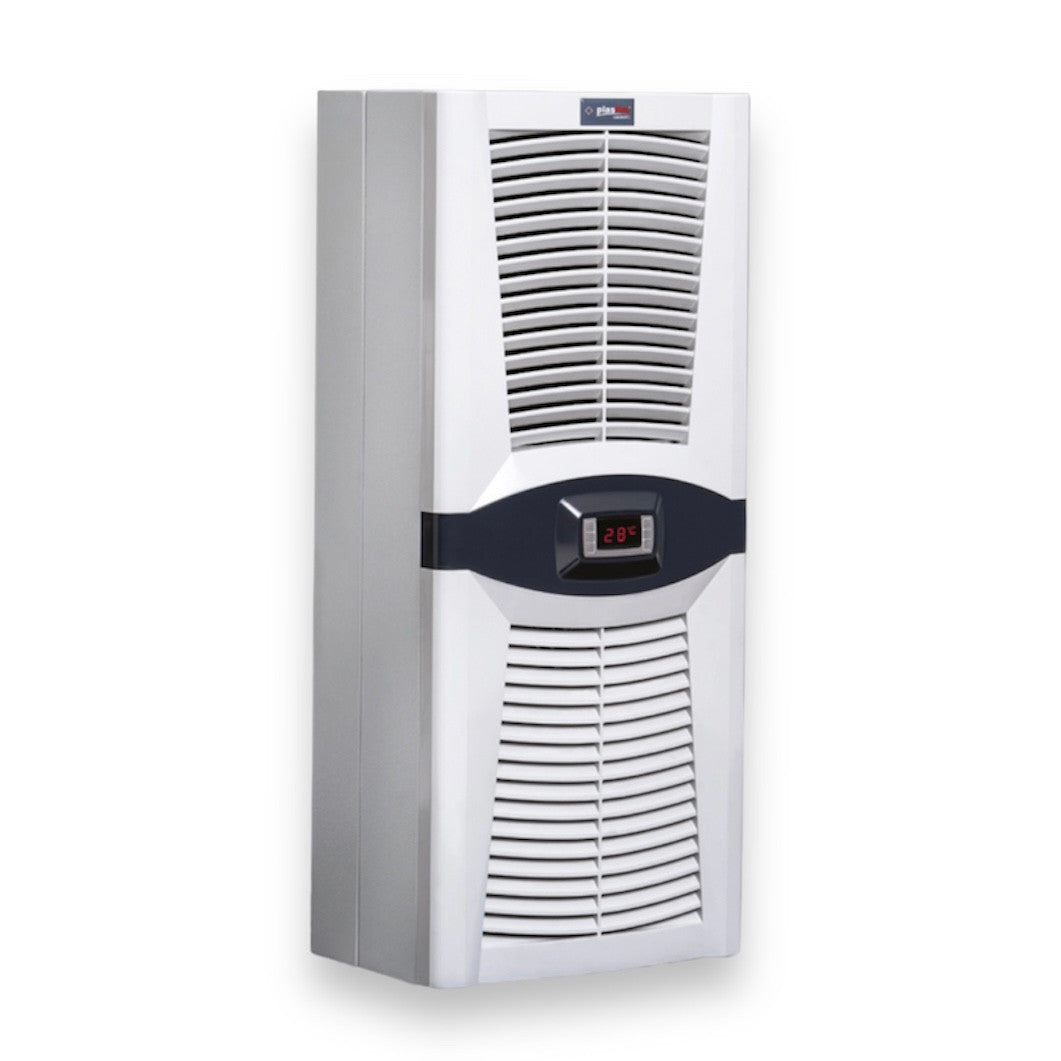

Air conditioning unit "Design Series" for cabinets / cooling devices 2500 Watt / 8550BTU for side or wall mounting in cabinets and automation cabinets.
The PAD2550.01 (PLASTIM) air conditioning for switchboards is equipped with the latest open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensing evaporator, and a limit switch for controlling the opening of the switchboard doors.
The delivery includes everything necessary for the installation of the air conditioning for the switchboard - seals, drainage pipe, mounting screws, power connector.
|
TECHNICAL DATA |
PAD2550.01 |
|
Cooling Capacity L35 / L35 |
2500W / 8550BTU |
|
Operating Voltage |
230 VAC |
|
Frequency |
50/60 Hz |
|
Starting Current |
11A |
|
Operating Current |
3.8A |
|
Fuse |
16A |
|
Power Consumption |
800W |
|
Operating Range |
0-55 °C |
|
Factory Thermostat Setting |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Indoor Circuit |
510 m³/h |
|
Max. Air Volume Outdoor Circuit |
625 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
750gr |
|

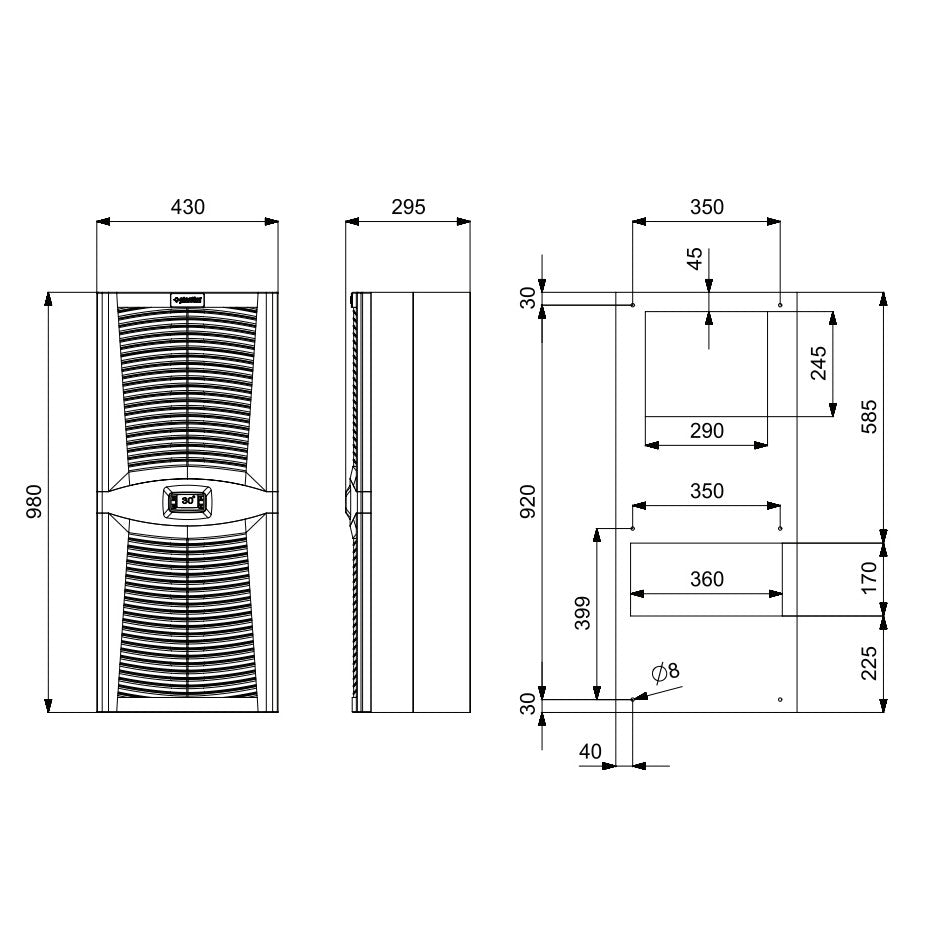

Dimensions |
980x430x270mm |
|
Weight |
47 kg |
|
Sound level |
82 dB |
|
Degree of protection (internal circuit) |
IP 54 |
|
Degree of protection (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
