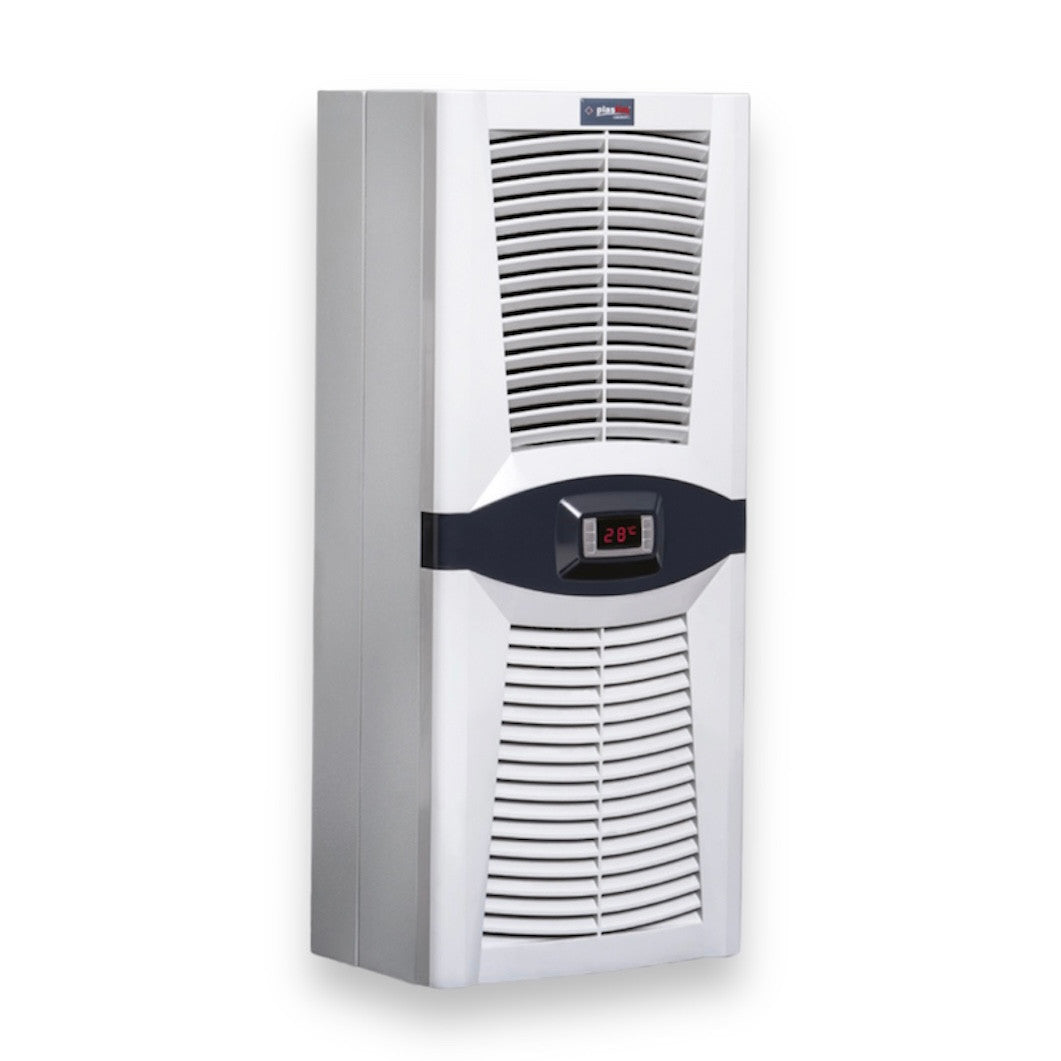

The "Design Series" air conditioning unit for switchboards / cooling devices 2500 Watt / 8550BTU for side or wall mounting on switchboards and automation boards.
The PAD2500.01 (PLASTIM) air conditioning for switchboards is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the switchboard doors.
The delivery includes everything necessary for the installation of the air conditioning for the switchboard - seals, drainage pipe, mounting screws, power connector.
TECHNICAL DATA |
PAD2500.01 |
Cooling Capacity L35 / L35 |
2500W / 8550BTU |
Operating Voltage |
230 VAC |
Frequency |
50/60 Hz |
Starting Current |
11A |
Operating Current |
3.8A |
Fuse |
16A |
Power Consumption |
800W |
Operating Range |
0-55 °C |
Factory Thermostat Setting |
35 °C |
Differential |
4 °C |
Max. Air Volume Indoor Circuit |
510 m³/h |
Max. Air Volume Outdoor Circuit |
625 m³/h |
Refrigerant type |
R134a |
Refrigerant quantity |
750gr |
Dimensions |
980x430x270mm |
Weight |
47 kg |
Sound level |
82 dB |
Degree of protection (internal circuit) |
IP 54 |
Degree of protection (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotary |
Fans |
EBMPAPST |
Mounting method |
Wall mounting |
