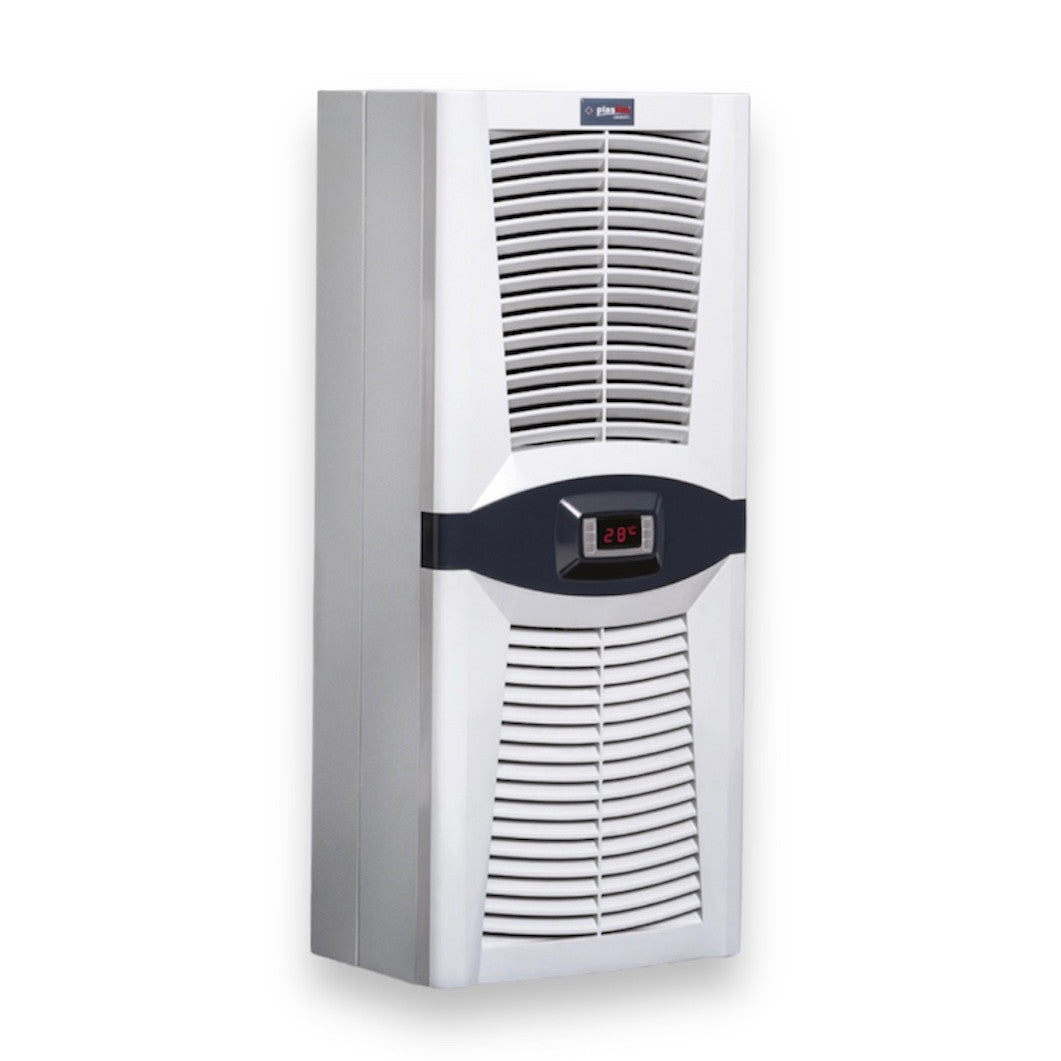

Air conditioning for the distribution board / cooler 1600 watts (Design series) for side or wall mounting of the distribution board and automation board.
The air conditioning PAD1600.01 (PLASTIM) for the distribution board is equipped with the latest open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the distribution board doors.
The delivery includes everything necessary for the installation of the air conditioning for the switchboard - seals, drainage pipe, mounting screws, power connector.
|
TECHNICAL DATA |
PAD1600.01 |
|
Cooling Capacity L35 / L35 |
1600W / 5500BTU |
|
Operating Voltage |
230 VAC |
|
Frequency |
50/60 Hz |
|
Starting Current |
8A |
|
Operating Current |
3.2A |
|
Fuse |
10A |
|
Power Consumption |
725W |
|
Operating Range |
0-55 °C |
|
Factory Thermostat Setting |
35 °C |
|
Differential |
4 °C |
|
Max. Air Volume Indoor Circuit |
510 m³/h |
|
Max. Air Volume Outdoor Circuit |
510 m³/h |
|
Refrigerant type |
R134a |
|
Refrigerant quantity |
600gr |
|
Dimensions |
980x430x270mm |
|
Weight |
45kg |
|
Sound level |
79 dB |
|
Degree of protection (internal circuit) |
IP 54 |
|
Degree of protection (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotary |
|
Fans |
EBMPAPST |
|
Mounting method |
Wall mounting |
