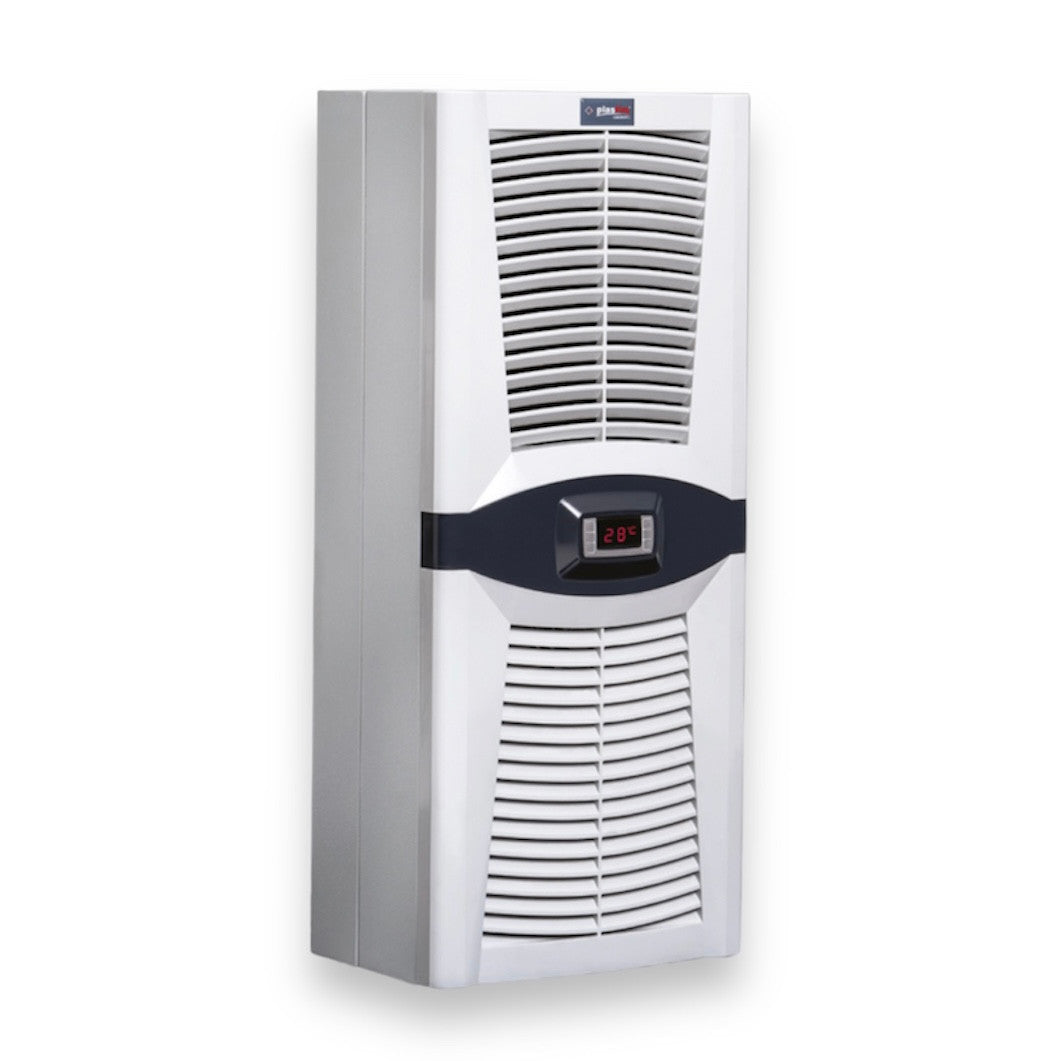

"Design Series" Air Conditioning for Cabinet/Cooler 1100 Watt / 3800BTU for side or wall mounting of the cabinet and automation board.
Air Conditioning PAD1100.01 (PLASTIM) for cabinets is equipped with a modern open-type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the cabinet doors.
The delivery includes everything necessary for the installation of air conditioning for the cabinet - seals, drainage pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD1100.01 |
| Cooling capacity L35 / L35 | 1100W / 3800BTU |
| Operating voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Starting current | 7.2A |
| Operating current | 2.5A |
| Fuse | 10A |
| Power consumption | 575W |
| Operating range | 0-55 °C |
| Factory setting of thermostat | 35 °C |
| Differential | 4 °C |
| Max. Air volume Indoor circuit | 340 m³/h |
| Max. Air volume Outdoor circuit | 590 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 310gr |

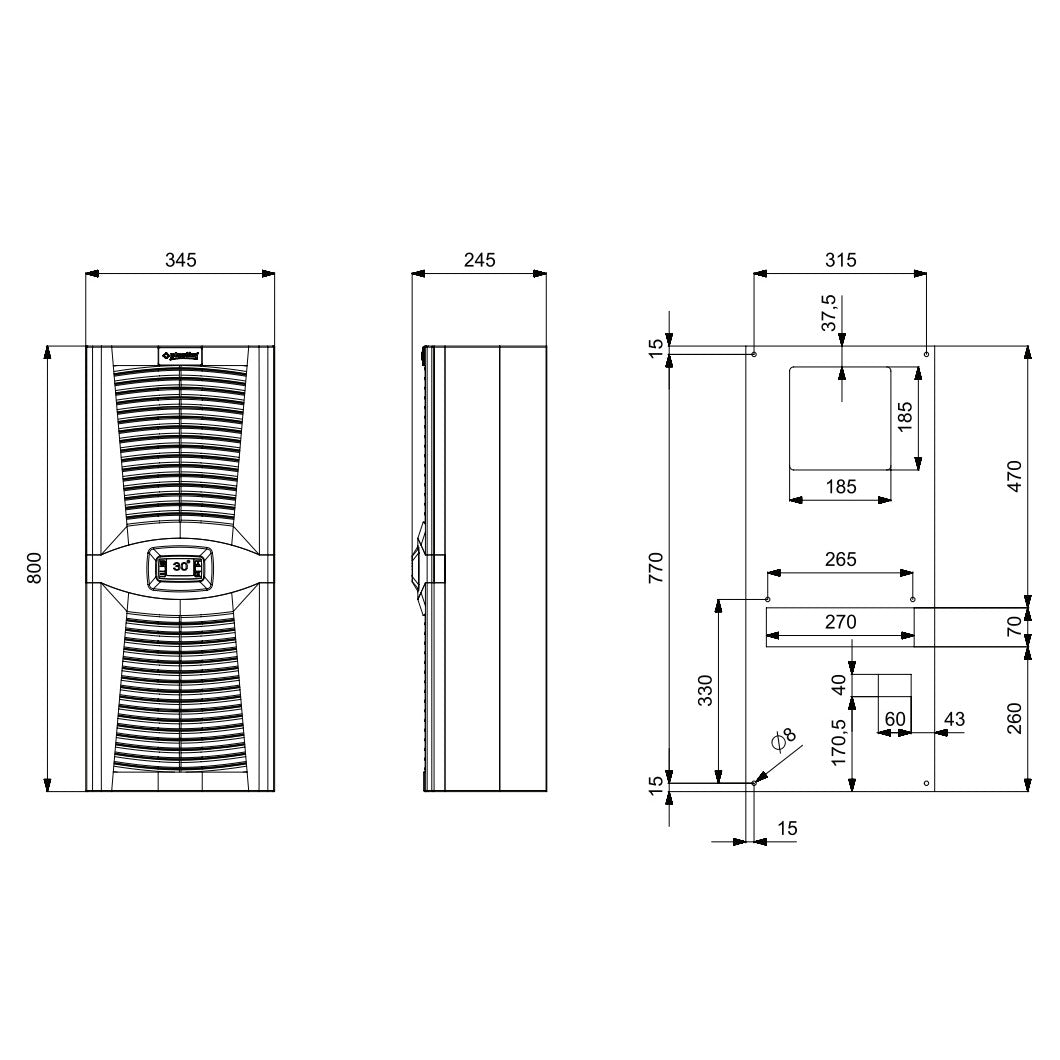

| Dimensions | 800x345x223mm |
| Weight | 32 kg |
| Sound level | 76 dB |
| Degree of protection (indoor circuit) | IP 54 |
| Degree of protection (outdoor circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mounting |
