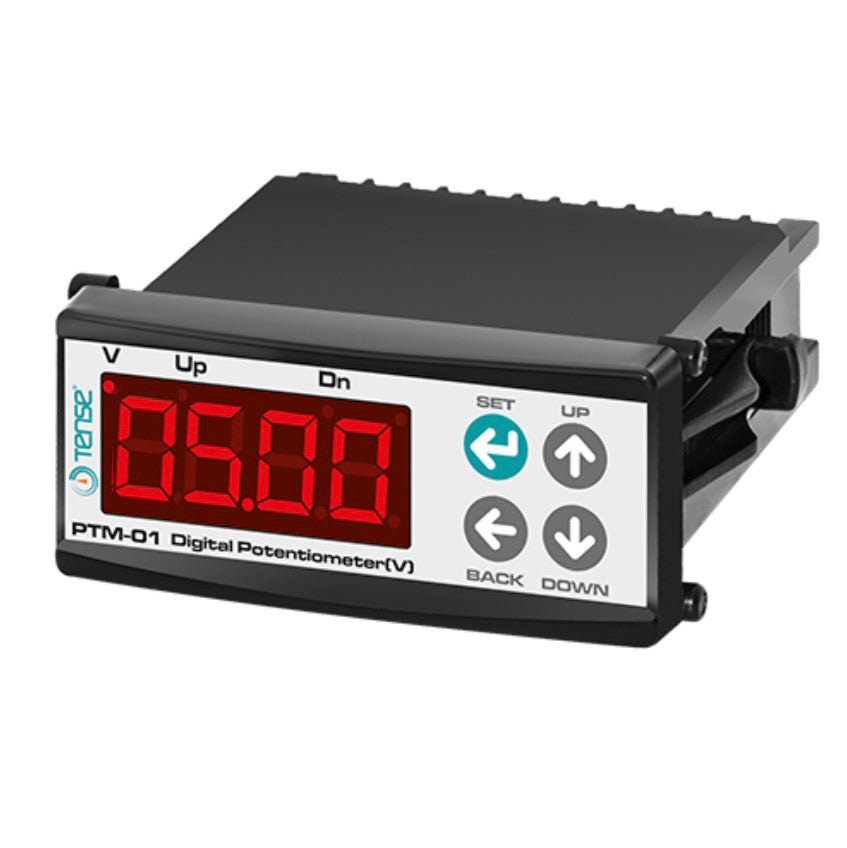

Digital potentiometer, voltage source 0-10V
- Regular price
- €50,12
- Regular price
-
- Sale price
- €50,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
Digital potentiometers are control devices that produce an analog output in the range of 0-10 V
- Microprocessor-based
- Analog output: 0-10V
- Access to the menu and control of the analog output using front buttons

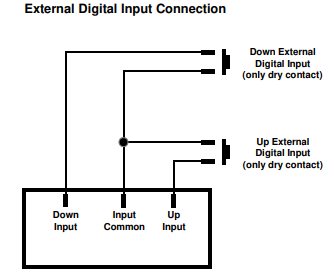

- Control of the analog output via digital inputs
- Adjustable upper and lower scale levels
- Adjustable upper and lower limit for SET
- Independent function selection for front buttons and digital inputs to control the analog output
- Password protection
- SECU setting for enabling/disabling access to the SET configuration menu
- High accuracy
- EEPROM memory for storing settings
- Easy connection using connectors
TECHNICAL SPECIFICATION
- Dimensions: 35x77 mm
- Cutout in panel: 29x71mm
- Display: 4 digits 7 segments
- Analog output: 0-10 V or 4-20 mA (to be specified when ordering)
- Load impedance 0-10V: >5K
- 4-20mA max. Voltage: <10V
- Resolution: 2mV (0-10V), 4μA (4-20mA)
- Accuracy: ±%1; (overrange)
- User control: Using buttons on the front panel or digital inputs up/down
- Digital inputs: only dry contact input
- Power supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
- Power consumption: < 6VA
- Humidity: 80% up to 30°C, then linearly decreases to 50% at 50°C (without condensation)
- Altitude: < 2000 m
- Protection class: IP20
- Operating temperature: 0 ... 50 °C
- Storage temperature: -10 °C ... 60 °C (without frost)
- Weight: < 0.5 kg
