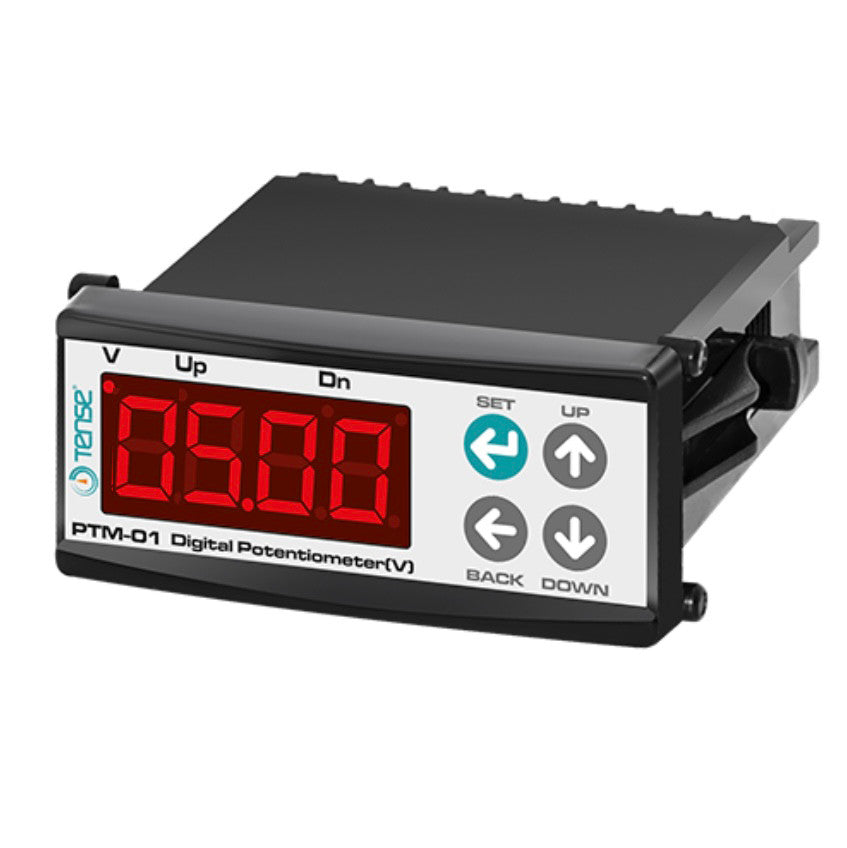

Digital potentiometer, voltage source 0-10V

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

Digital potentiometers are control devices that produce an analog output in the range of 0-10 V

• Microprocessor-based
• Analog output: 0-10V
• Access to the menu and control of the analog output using front buttons
• Control of the analog output via digital inputs
• Adjustable upper and lower scale levels
• Adjustable upper and lower limit for SET
• Independent function selection for front buttons and digital inputs to control the analog output
• Password protection
• SECU setting for enabling/disabling access to the SET configuration menu
• High accuracy
• EEPROM memory for storing settings
• Easy connection using connectors

TECHNICAL SPECIFICATION

• Dimensions: 35x77 mm
• Cutout in panel: 29x71mm
• Display: 4 digits 7 segments
• Analog output: 0-10 V or 4-20 mA (to be specified when ordering)
• Load impedance 0-10V: >5K
• 4-20mA max. Voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA)
• Accuracy: ±%1; (overrange)
• User control: Using buttons on the front panel or digital inputs up/down
• Digital inputs: only dry contact input
• Power supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30°C, then linearly decreases to 50% at 50°C (without condensation)
• Altitude: < 2000 m
• Protection class: IP20
• Operating temperature: 0 ... 50 °C
• Storage temperature: -10 °C ... 60 °C (without frost)
• Weight: < 0.5 kg
