TENSE

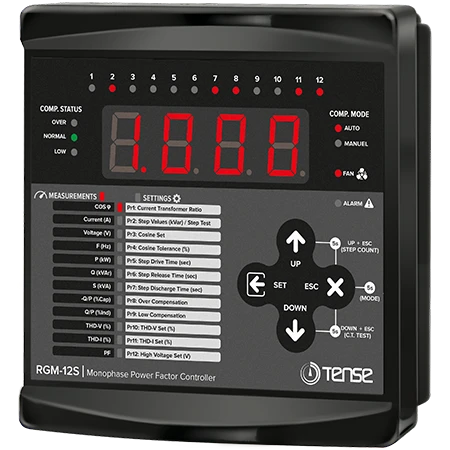

12-step reactive power regulator with LED display

In stock - 8 items available
SKU: RGM-12S
€151,60 vrátane DPH

Online payment by card - after completing your order, you will be redirected to the payment gateway, and a payment confirmation will be sent to your email.

Cash on delivery – you pay the payment according to the payment terms to the driver of the transport company.

By transfer – you will receive an advance invoice to your email no later than the next business day, on which you will find the account number that you enter when making the payment.

On invoice - this payment option is available to partners who have a framework agreement with our company.

If you would like to use the last 2 payment methods, please call our manager and he will provide you with instructions on how to obtain an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

In the event of a complaint, no fee is charged for returning the goods.

12 steps Single-phase connection Power factor controller for managing power factor in networks with symmetrical loads (TENSE)

The RGM-12S reactive power control relay is designed to reduce inductive powers that are not utilized by loads but are drawn from the grid. When inductive reactive power is drawn from the grid, it activates capacitors of the corresponding value. In this way, it tries to bring the Cos fi value to the desired level.

  • 7 Different power factor compensation programs

  • Manual power factor compensation programs

  • Can only compensate inductive systems

  • Automatic step measurement

  • Step drive times, release, and discharge are adjustable

  • Adjustable harmonic alarm values for voltage and current

  • Option to set alarm values for excessive and insufficient compensation

  • Voltage alarm output, harmonic voltage/current, excessive and insufficient compensation

  • Voltage, current, and frequency values can be monitored

  • Active power, reactive power, and apparent power values can be monitored

  • Up to 15th harmonic THD-I can be monitored

  • Up to 15th harmonic THD-V can be monitored

  • Cosine value can be monitored

  • Power factor value can be monitored

  • Automatic fan output

  • Uniform aging in steps (in some compensation programs)
